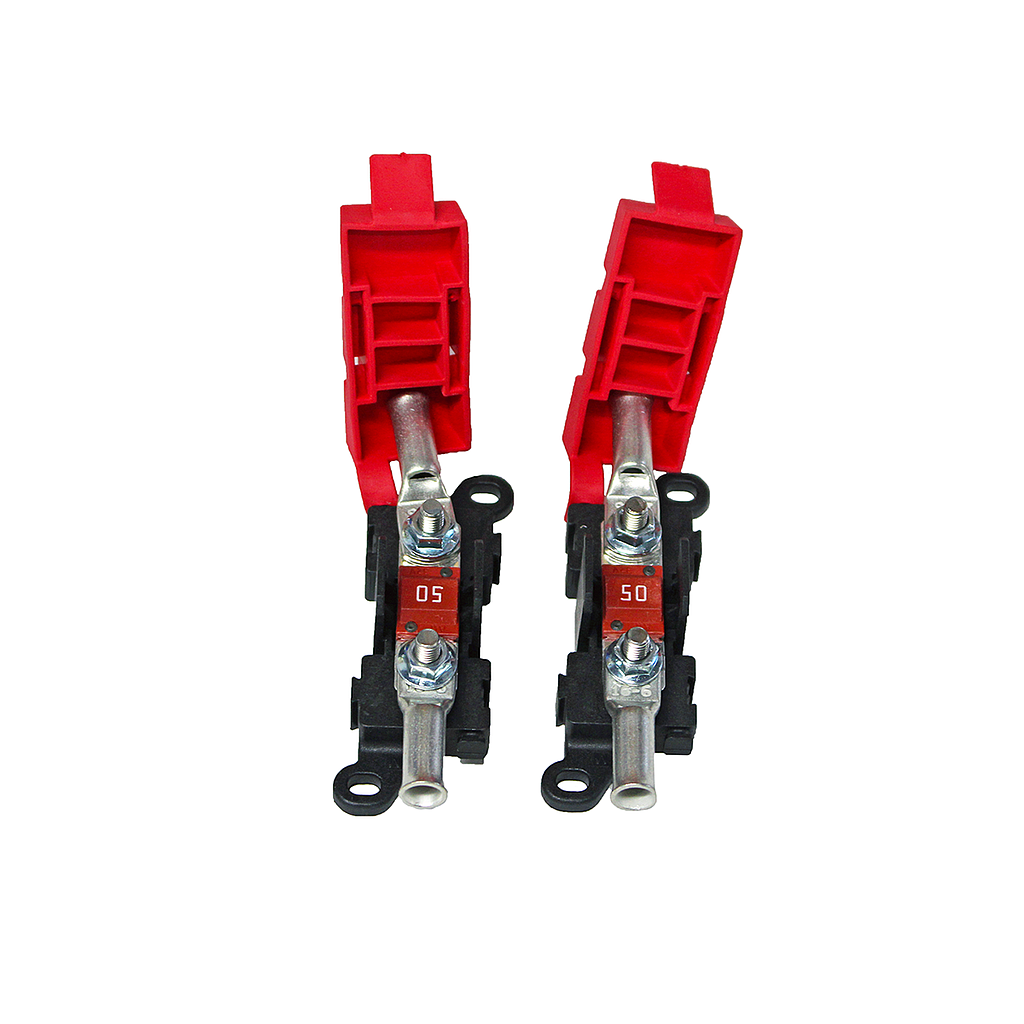

Alvolta AMI/Midi 50A Fuse Kit
Kit features
- Protects two separate circuits up to 50A
- 2x ALV-FHM Modular AMI/Midi Fuse Holders
- 4x AMI50 50A AMI/Midi fuses (two fitted, two spares)
- 4x 16mm² bellmouth cable lugs
- Suits 12-48V systems
Fuse features

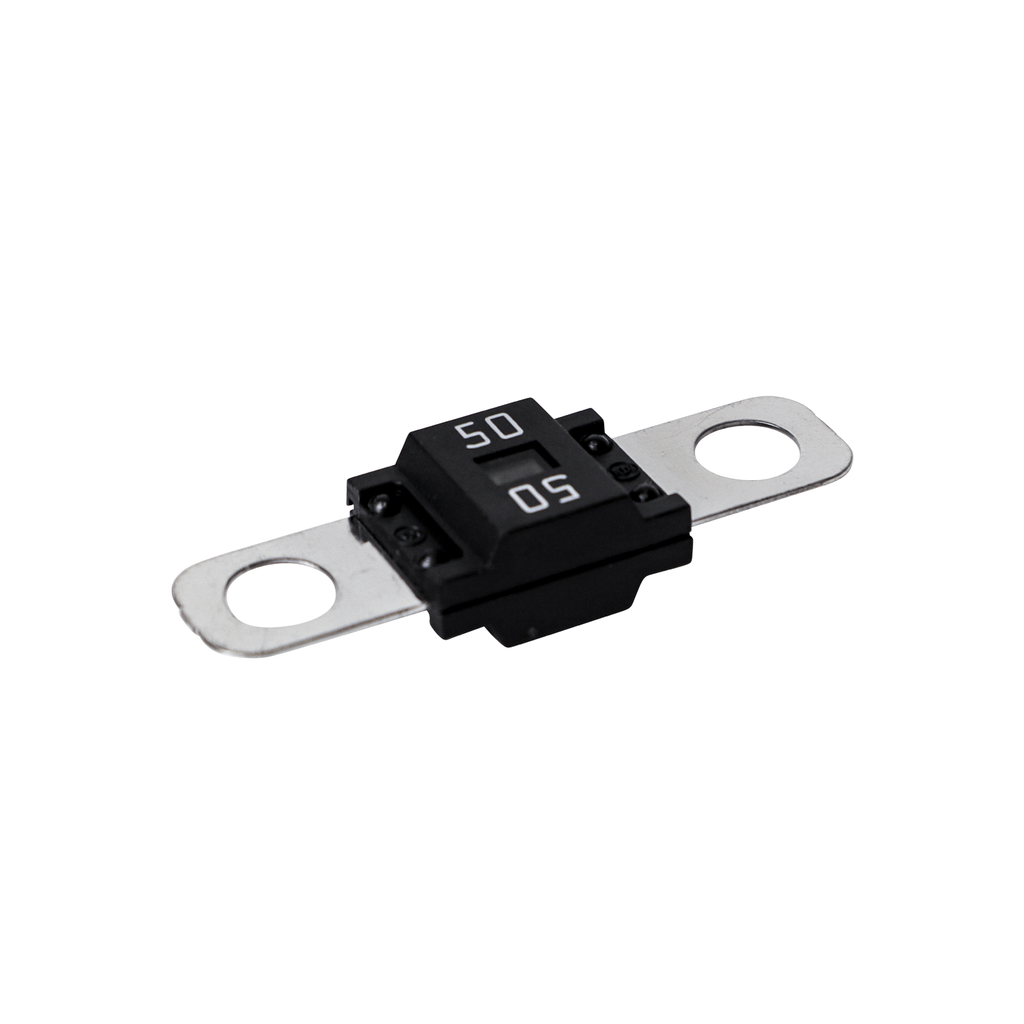

- 50A AMI/Midi bolt-in fuse
- Rated 80V DC or less
- 2000A interrupting rating at 80V DC
- Inspection window shows when a fuse has blown
- Premium copper alloy terminals
- Compliant with ISO 8820-5 / GB/T31465.5
Holder features
- Part of the Alvolta Modular Fuse Holder System

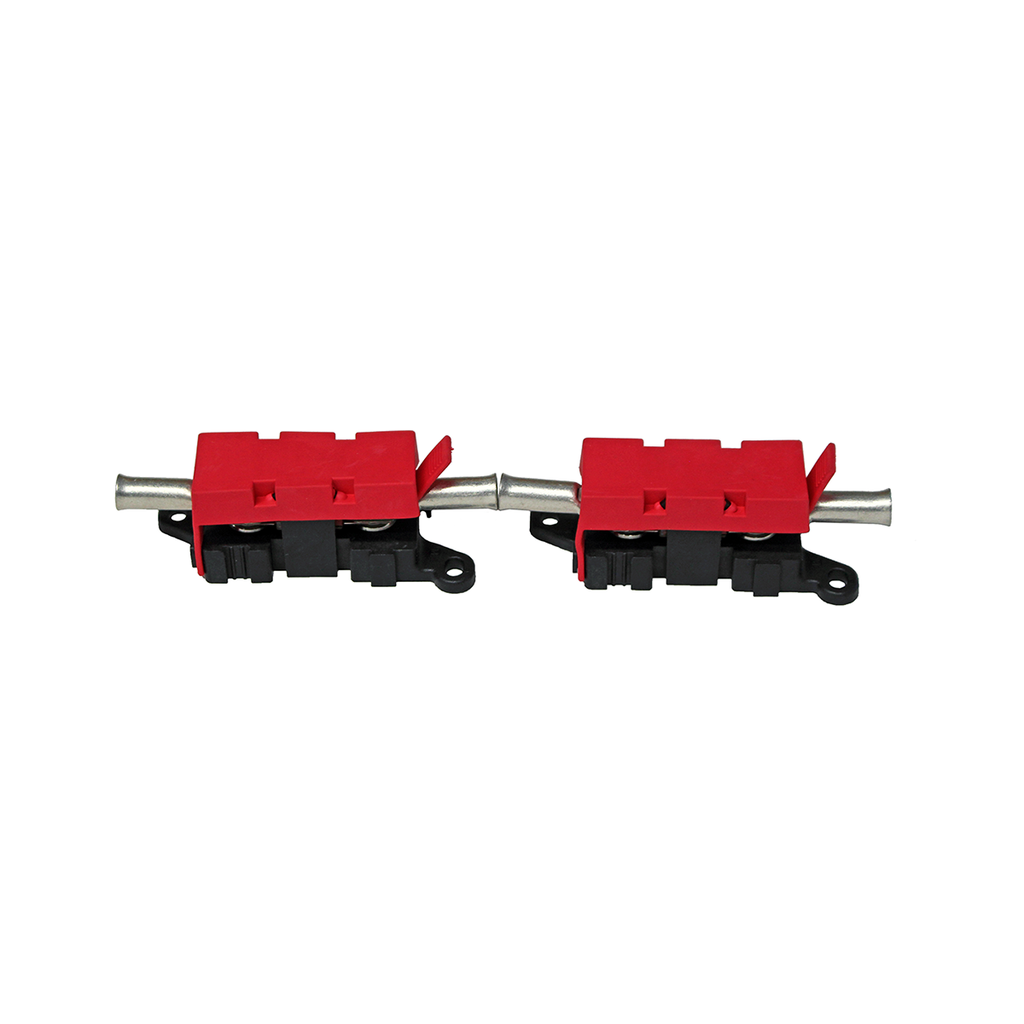

- Joins to other holders with Alvolta linking plates
- M5 nickel-plated copper studs

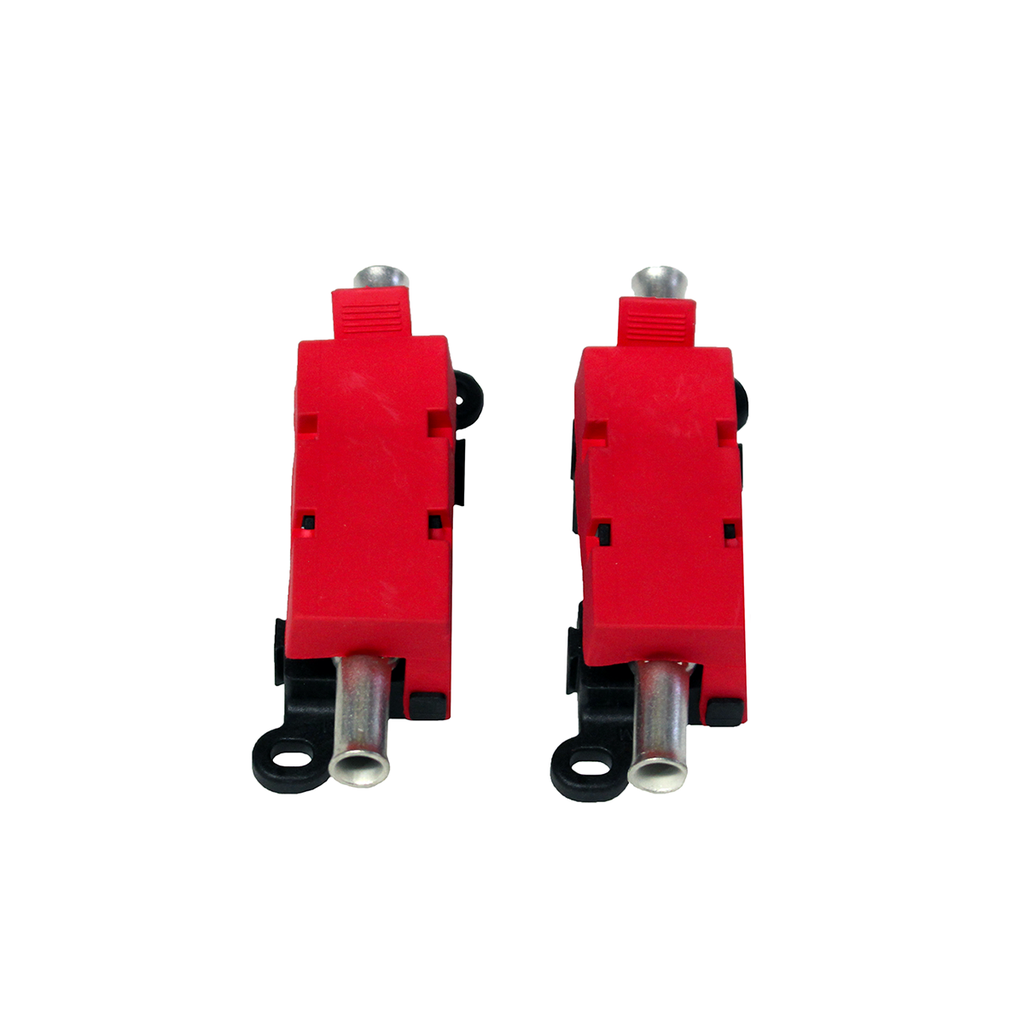

- Red silicone protective cover
- Rated up to 400A, suitable for 48V systems
Where to use it
The Alvolta AMI/Midi 50A Fuse Kit gives you everything needed to fuse two separate circuits in a 12, 24 or 48V system. It suits loads such as fridges, compressors, small inverters and DC-DC charger outputs in caravans, camper trailers, 4WDs, boats and off-grid setups, and the two spare fuses mean you're covered on the road if one blows.
Choose the fuse to protect the cable, not the device: it should be rated at or below the cable's current capacity and above the normal load. Mount the holders as close as possible to the battery or power source, and add Alvolta linking plates to join several holders into one compact fuse block with a common feed. Each holder has a red silicone cover over the fuse and terminals, and the kit is backed by a 1-year warranty.
What's in the box
- 2x ALV-FHM Alvolta Modular AMI/Midi Fuse Holder
- 4x AMI50 Alvolta AMI/Midi 50A Fuse
- 4x S166BM 16mm² Bellmouth Cable Lug
Dimensions
Holder width | 34 mm |
Holder length | 79 mm |
Holder height | 26 mm |
Fuse body width | 10 mm |
Fuse overall width (terminals) | 12.1 mm |
Fuse length | 41 mm |
Fuse depth | 8 mm |
Safety features
- Fuse compliant with ISO 8820-5 / GB/T31465.5
- UL94-V0 flame-rated fuse housing
- Fuse inspection window
- Protective cover over live terminals
Warranty
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
