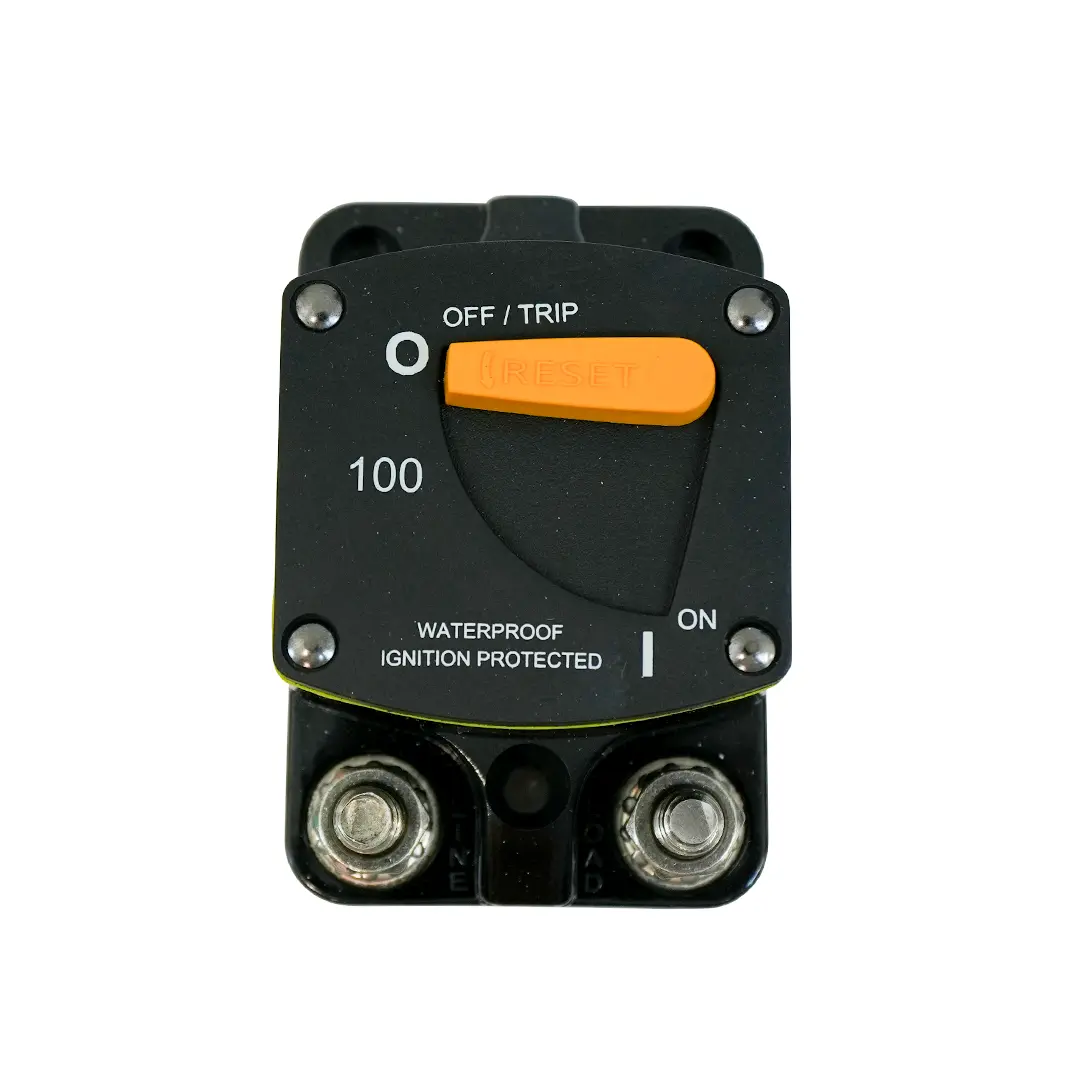

Alvolta 100A Heavy Duty Manual Reset Circuit Breaker
Alvolta 100A Heavy Duty Manual Reset Circuit Breaker
Features
- 100 A
- Manual reset circuit breaker
- Marine-grade
- Slow blow on peak power
- Surface mount for simple on-wall installation
- Suitable for 12 - 48 V systems
- Suitable for heavy-duty applications
- M8 terminal studs
- IP67 rated
- Ignition protected
- Circuit switching and protection in one
- Clear, single lever operation
- Trip-free design
- Recessed mounting holes for tidy installation
Slow blow on peak power
Alvolta Heavy Duty Manual Reset Circuit Breakers are designed to tolerate temporary high power peaks without immediately tripping. Unlike fast-acting fuses or standard circuit breakers that break/trip instantly, this range of Alvolta circuit breakers will allow for a short-duration surge before the sustained overcurrent triggers the mechanism.
Where to use it
Alvolta Heavy Duty Manual Reset Circuit Breakers are ideal for marine-specific applications. Backed by marine wiring compliance certifications, these breakers offer heavy duty performance in boat and marine installations.
They are also suitable for use in motorhome, 4WD, off-grid, and under bonnet applications.
Its durable design and IP67 rating make these an excellent choice for heavy-duty, off-road applications. It is sealed internally against moisture, dust, and dirt.
Dimensions
Width | 59.1 mm |
Height | 87.9 mm |
Depth | 48.2 mm |
Weight | 0.22 kg |
Compliance
- SAE J553 (Fuse/protection standard)
- ABYC E-11 (Marine wiring compliance certification)
- UL1500 (Marine certification)
- SAE J1117 (Ignition protection)
- IP67
Warranty
- 3-year warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
