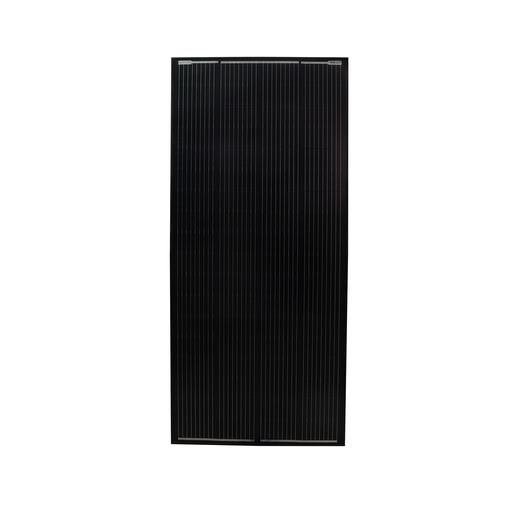

Alvolta Eclipse 12V 200W Mono Solar Panel
Fixed panel with black frame | 1500 x 680 x 35 mm
| Brand: Alvolta |
Alvolta Eclipse 12 V 200 W Mono Solar Panel
Performance features
- 200 W maximum power output
- 22.4% efficiency rating
- Suitable for 12 V systems
- Suitable for series and parallel configuration
- Compatible with most solar regulator MPPTs*
*Check MPPT spec sheet to ensure VOC is compatible with the panel's output voltage.
Solar cell features
- A-grade monocrystalline solar cells
- Tempered glass for improved protection and resistance against weather
- Fixed solar panel
Frame features
- Anodised aluminium frame
- Black frame and black back sheet for improved aesthetics
Inclusions
- 12 V 200 W fixed solar panel
- IP65-rated junction box
- MC4-style connectors
- Pre-wired 900mm 4mm2 output cables
Where to use it
Mount to 4x4 roof racks or the deck of your caravan, motorhome, or boat. Ideal for use in camping, 4WD touring, caravanning, and marine applications.
Not suitable for pole mount applications due to its size.
Dimensions
Width | 680 mm |
Height | 1500 mm |
Depth | 35 mm |
Weight | 11.07 kg |
Safety features and certifications
- 2011 / 65 / EU and amending directive (EU)2015/863
- EN IEC 62368-1:2020+A11:2020
Warranty
- 5-year warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
