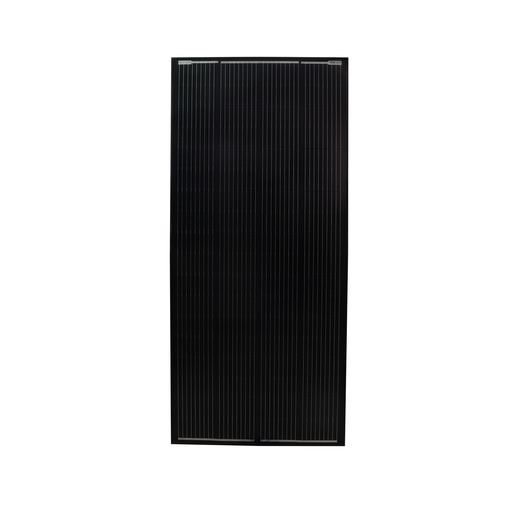

Alvolta Eclipse 12V 200W Mono Solar Panel
Panel features
- 200W 12V fixed solar panel, 22.4% module efficiency
- Monocrystalline cells, 36 (4 x 9)
- Vmp 19.8V, Imp 10.10A, Voc 23.3V
- Works with PWM and MPPT solar controllers; can be wired in series or parallel
Build
- Anodised aluminium frame
- IP65 sealed junction box
- Pre-wired 4mm², 900mm cables with MC4-style connectors
- Operating range -40°C to +85°C
Where to use it
The Alvolta Eclipse 12V 200W Mono Solar Panel suits 4WD, caravan, motorhome and off-grid 12V systems where you want strong output from a single fixed panel. Pair it with a suitable solar controller to charge a 12V battery.
Check that your controller's input voltage suits the panel's open circuit voltage (23.3V), especially when wiring panels in series. The panel is backed by a 5-year warranty.
What's in the box
- 200W solar panel with pre-wired MC4-style output cables
- Solar controller not included
Dimensions
Length | 1500 mm |
Width | 680 mm |
Depth | 35 mm |
Weight | 11.07 kg |
Warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated, and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
