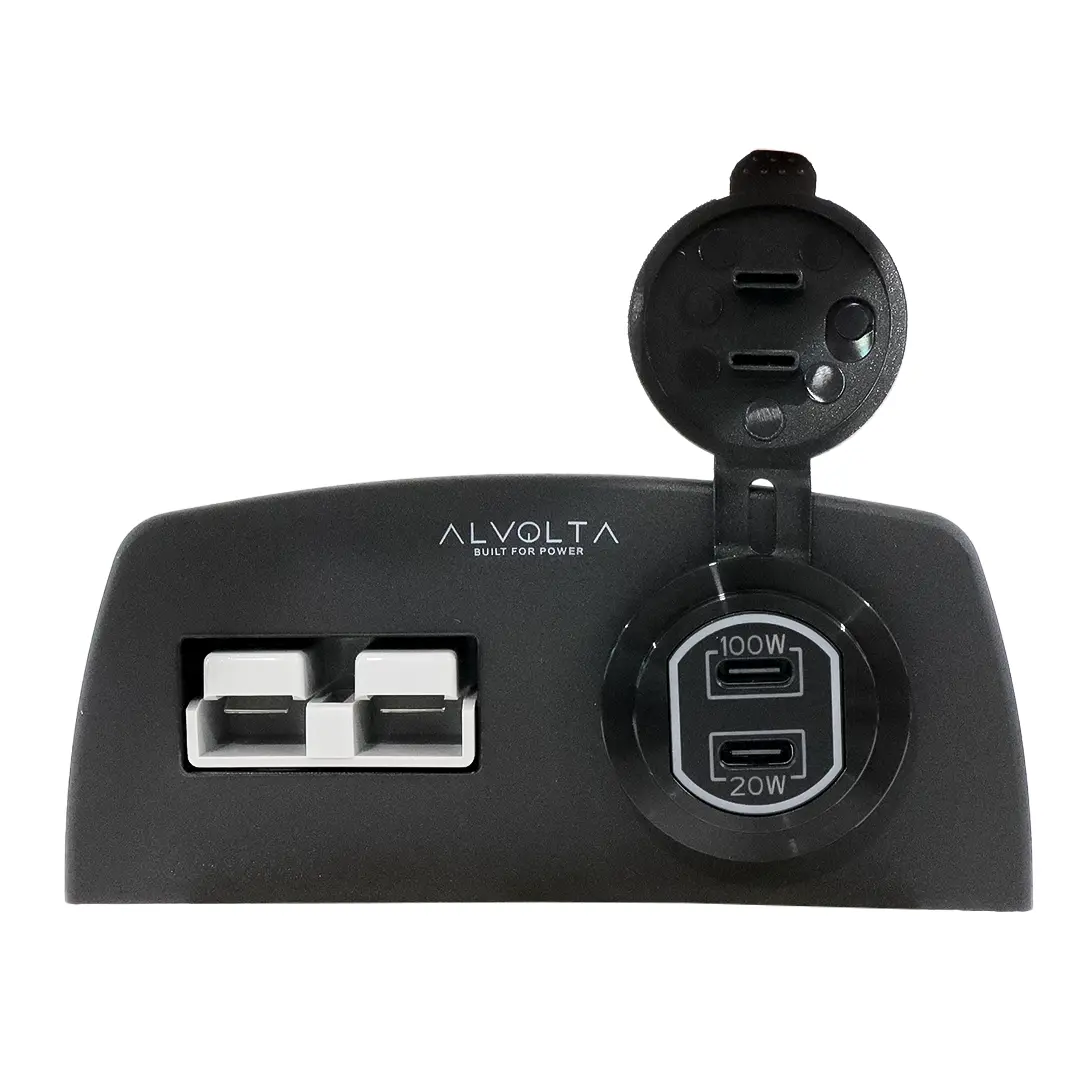

Alvolta Duo Anderson/USB C+C Surface Mount Socket
Alvolta Duo Anderson/USB C+C Surface Mount Socket
Features
- Dual USB-C & USB-C power socket
- QuickCharge technology for fast appliance charging
- Provides a combined 118 W power output
- Compatible with all standard smartphones
- 50A Anderson socket
- Provides DC power
- Suitable for 12 / 24 V systems
- Surface mounted
- IP65 rated
- Durable nylon design
Inclusions
- Anderson plug socket & USB C+C socket pre-assembled in surface mounting panel
- 4mm² UL 1015 cables for the USB C+C socket
- 2x Anderson contacts
- 2x 4mm mounting screws
Where to use it
The Alvolta Duo Anderson/USB C+C Surface Mount Socket is built to give you high-current connection and charging in one clean install, wherever the journey takes you. A 50 A Anderson plug lets you connect solarcases, DC-DC chargers, jump-start leads and other high-draw accessories straight into your system, while the paired dual USB-C port delivers up to 118 W combined, with one port pushing out up to 20 V / 5 A QuickCharge for fast device top-ups.
Its durable PA6 nylon housing and flame-retardant PVC Anderson plug are IP65 rated, so it holds up in caravans, camper trailers and 4WDs just as well as it does on a boat or marine console, and the surface-mount design makes for a simple install on dash tops, consoles or panels with no flush-cutting required. Rated to operate from -25°C to +85°C, it's built for Australian conditions, and it's backed by a 3-year warranty for genuine peace of mind.
Dimensions
Width | 120 mm |
Height | 53.2 mm |
Depth | 86.4 mm |
Warranty
- 3-year warranty
Applications
4WD
RV's
Caravans
Marine
Off-Grid Systems
