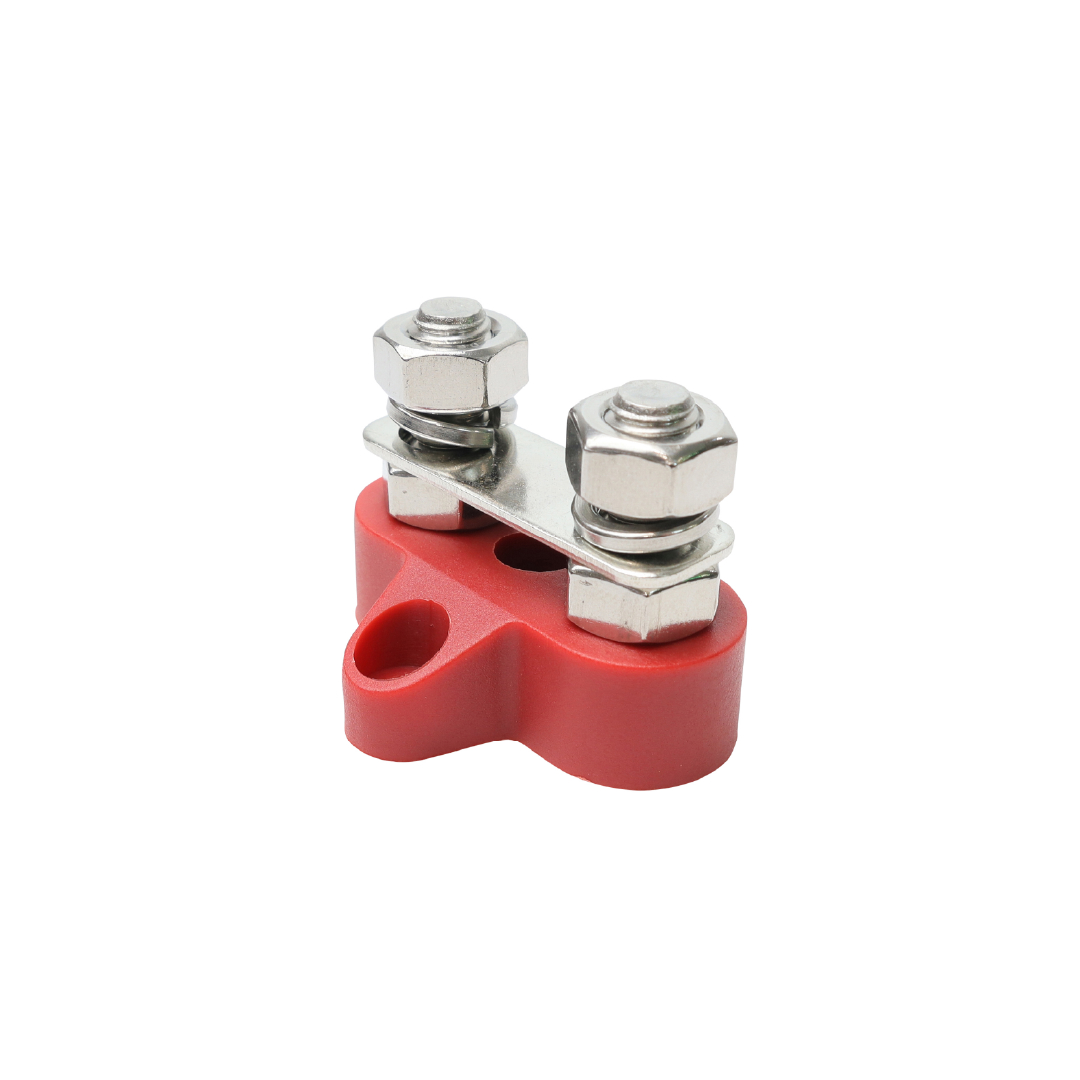

Alvolta M8 Dual Linked Terminal Stud Red
Stud features
- M8 stainless steel connection posts (two, linked)
- Rated 150A maximum
- Rated up to 70V DC
Build
- Glass fibre reinforced nylon base
- Tin-plated copper alloy hex nuts
- Stainless steel contact strip
- Red colour-coded base
Where to use it
The Alvolta M8 Dual Linked Terminal Stud Red gives you an insulated positive connection point to join several cables, for example linking accessory feeds or making a remote battery connection point in caravans, camper trailers, motorhomes, 4WDs, boats and off-grid systems. Two linked posts let you split the connection across two studs.
Use cable lugs to suit the M8 stud and keep the total current within the 150A rating. It screws down to a flat surface on its insulated base and is backed by a 1-year warranty.
Dimensions
Length | 51 mm |
Width | 48 mm |
Height | 43 mm |
Safety features
Warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated, and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
