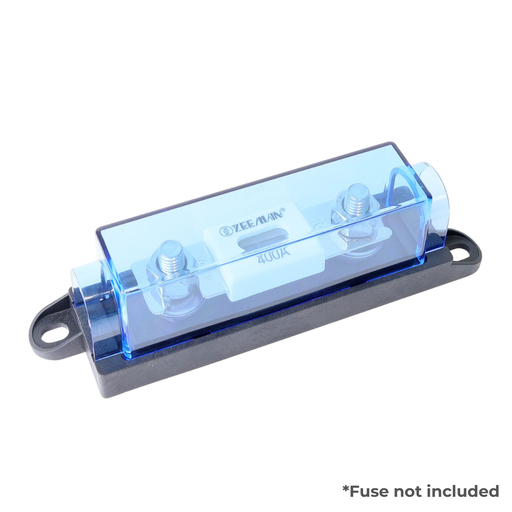

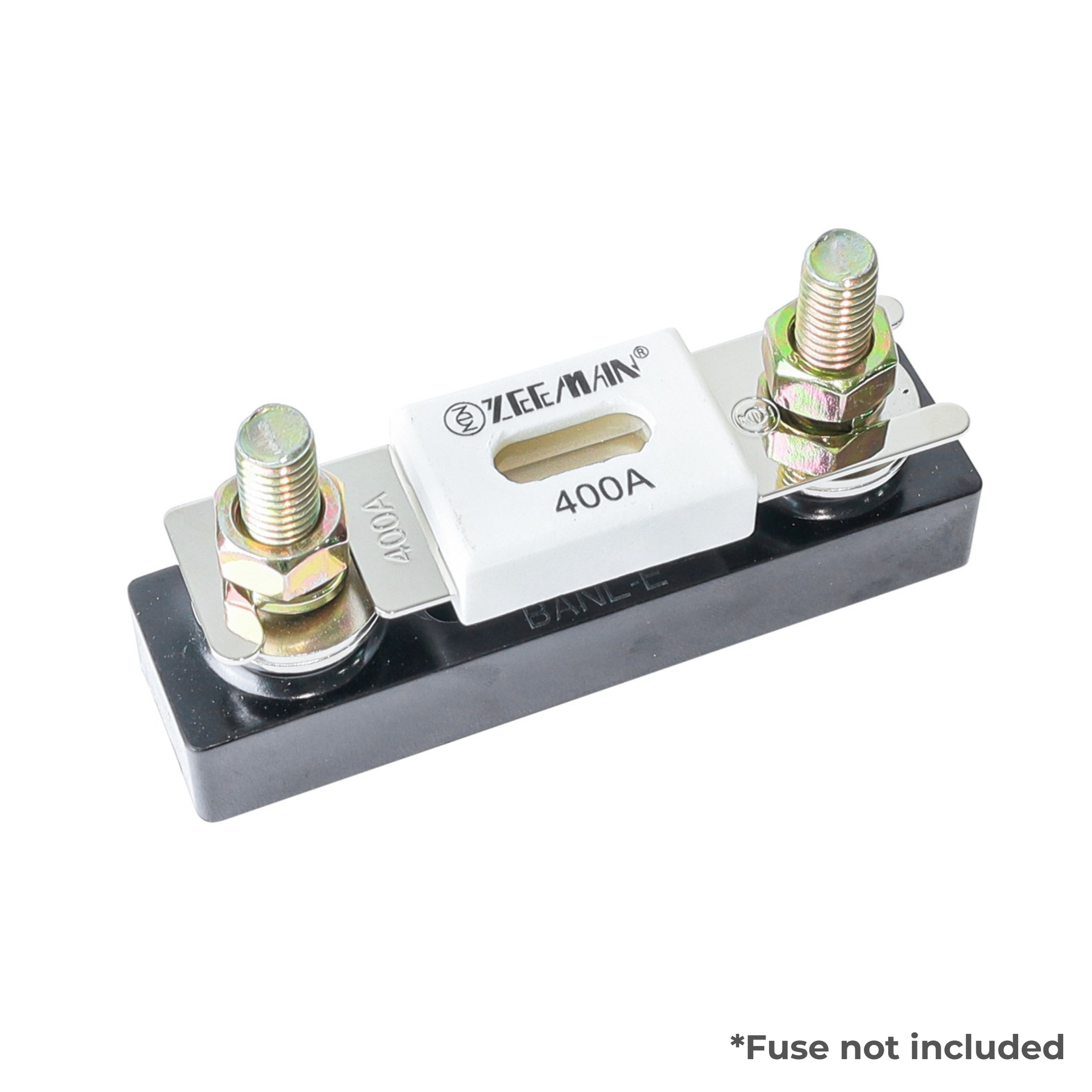

Alvolta ANL Fuse Holder
Holder features
- Holds one ANL fuse (fuse not included)
- Rated up to 400A
- Maximum voltage 32V DC
- M8 stainless steel terminal studs
- H62 copper flat washers
- PA66 + 30FR plastic body
Where to use it
The Alvolta ANL Fuse Holder protects high-current cables such as battery-to-inverter feeds, main battery links and alternator charging cables. It suits 12V and 24V systems in caravans, camper trailers, 4WDs, boats and off-grid setups where currents run up to 400A.
Mount it as close as possible to the battery or power source and choose an ANL fuse rated to protect the cable. Cables land on M8 stainless steel studs, the body is rated for -40°C to +120°C, and the holder is backed by a 1-year warranty.

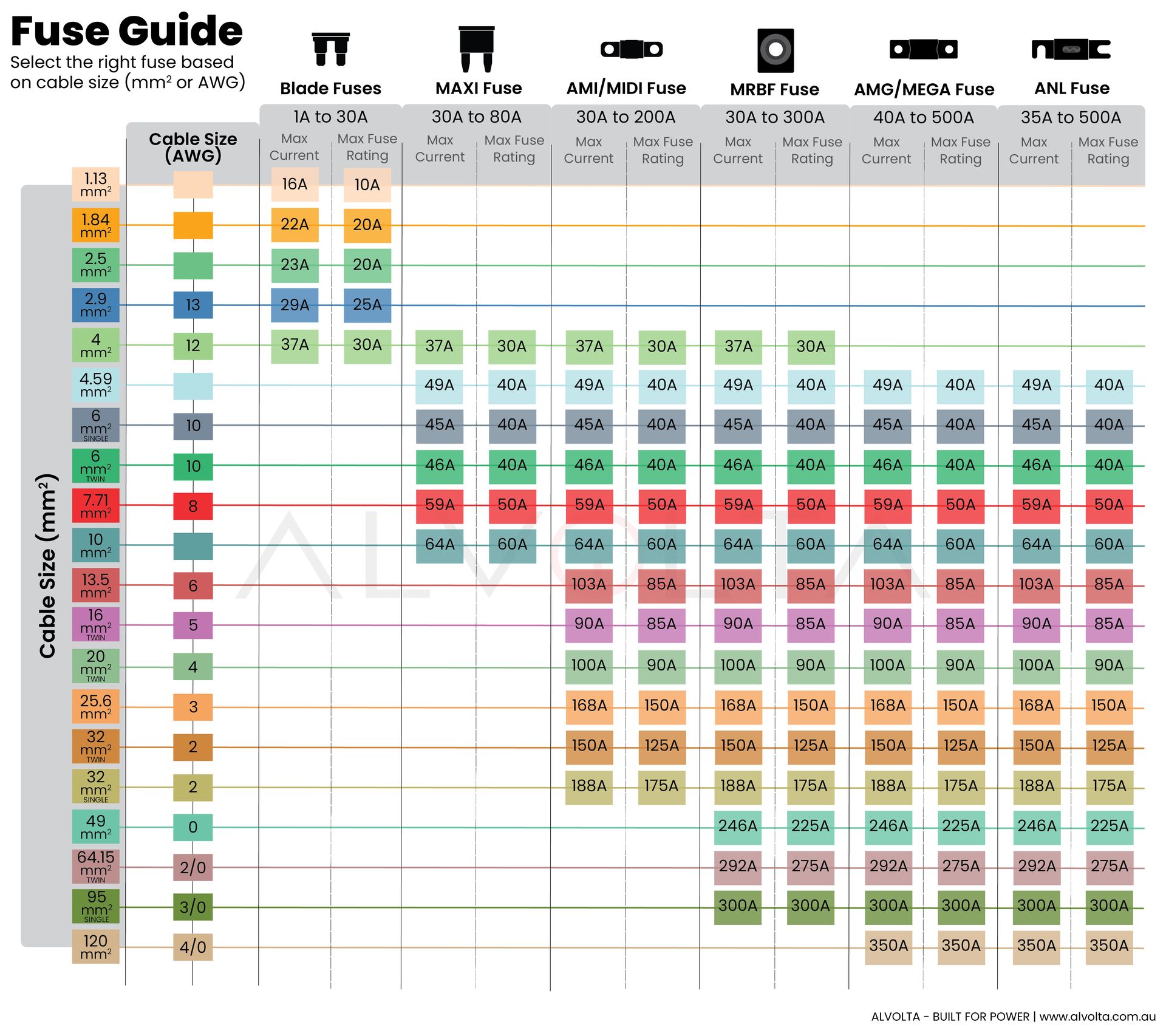

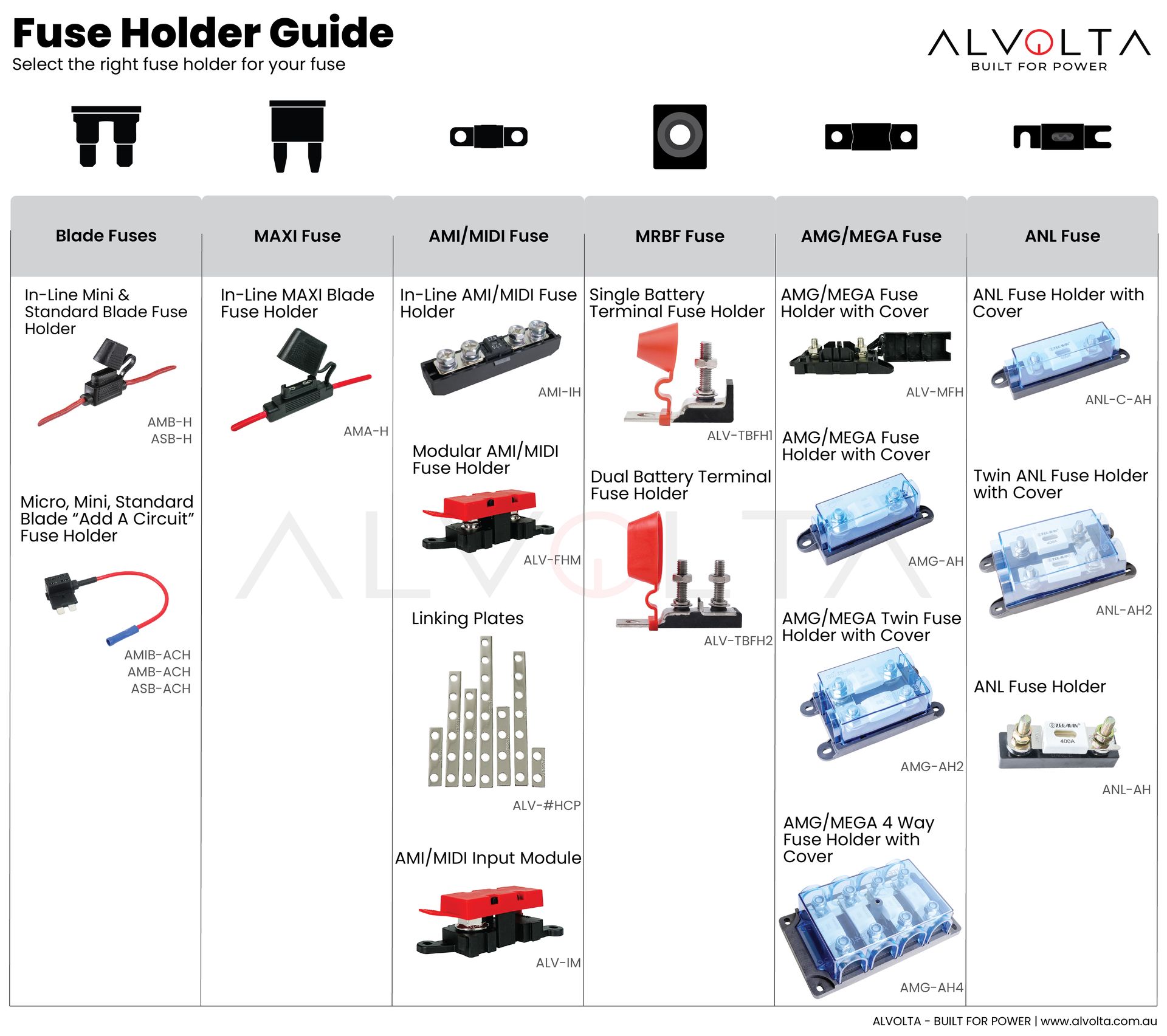

Fuse guides


Dimensions
Length | 90 mm |
Width | 23.5 mm |
Height | 45.5 mm |
Weight | 0.09 kg |
Warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
