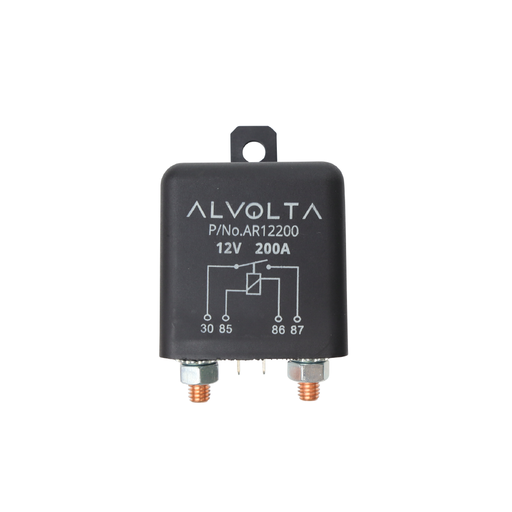

Alvolta Heavy Duty 12V 200A Ignition Relay
4-pin ignition relay for heavy-duty loads
Alvolta Heavy Duty 12 V 200 A Ignition Relay
Features
- 200 A switching current
- 4-pin ignition relay
- x2 M6 terminals
- x2 6.3 mm male lucar terminals
- Integrated fixed bracket
- Simple installation
- 6mm mounting hole size
- Designed for heavy-duty loads
- Quickly switch a higher current from a low power source
- Made of ABS plastic
Where to use it
Designed for use in dual battery systems, DC-DC charger setups, and accessory isolation. Protect your starter battery from draining with the Alvolta Heavy Duty 12 V 200 A Ignition Relay.
How to use it
The relay will sit between the start and the secondary battery. It has a contact point to connect to a vehicle's accessory circuit that only comes on when the ignition has started. This means, when the engine is off, there will be no power to the relay and it will not allow current to pass from the start battery to the secondary battery. This effectively isolates the start battery so that it doesn't drain.
Dimensions
Width | 55 mm |
Height | 88 mm |
Depth | 57 mm |
Weight | 0.94 kg |
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
