Alvolta Tradesmen Multi-Head Ratchet Crimping Kit
Ratchet crimping set with 5 crimping heads in hard carry case
Alvolta Tradesmen Multi-Head Ratchet Crimping Kit
Features:
- Tradesmen multi-head ratchet crimping set
- 5 head sizes available
- Hard carry case included
- Pressure adjustment for crimping force control
- Ergonomically designed handles
- Compact and lightweight
- Use 50% less energy with each crimp
What to use it for
These crimpers are designed to make secure electrical connections for low-voltage and 12V systems in a wide variety of applications including 4WDs and caravans, off-grid solar installations, and general electrical work. With multiple interchangeable heads, this crimping kit is suitable for crimping insulated and non-insulated terminals, cable lugs, Anderson plugs, and wire ferrules.
Cavities Included
| Terminal Type | Wire Size | |

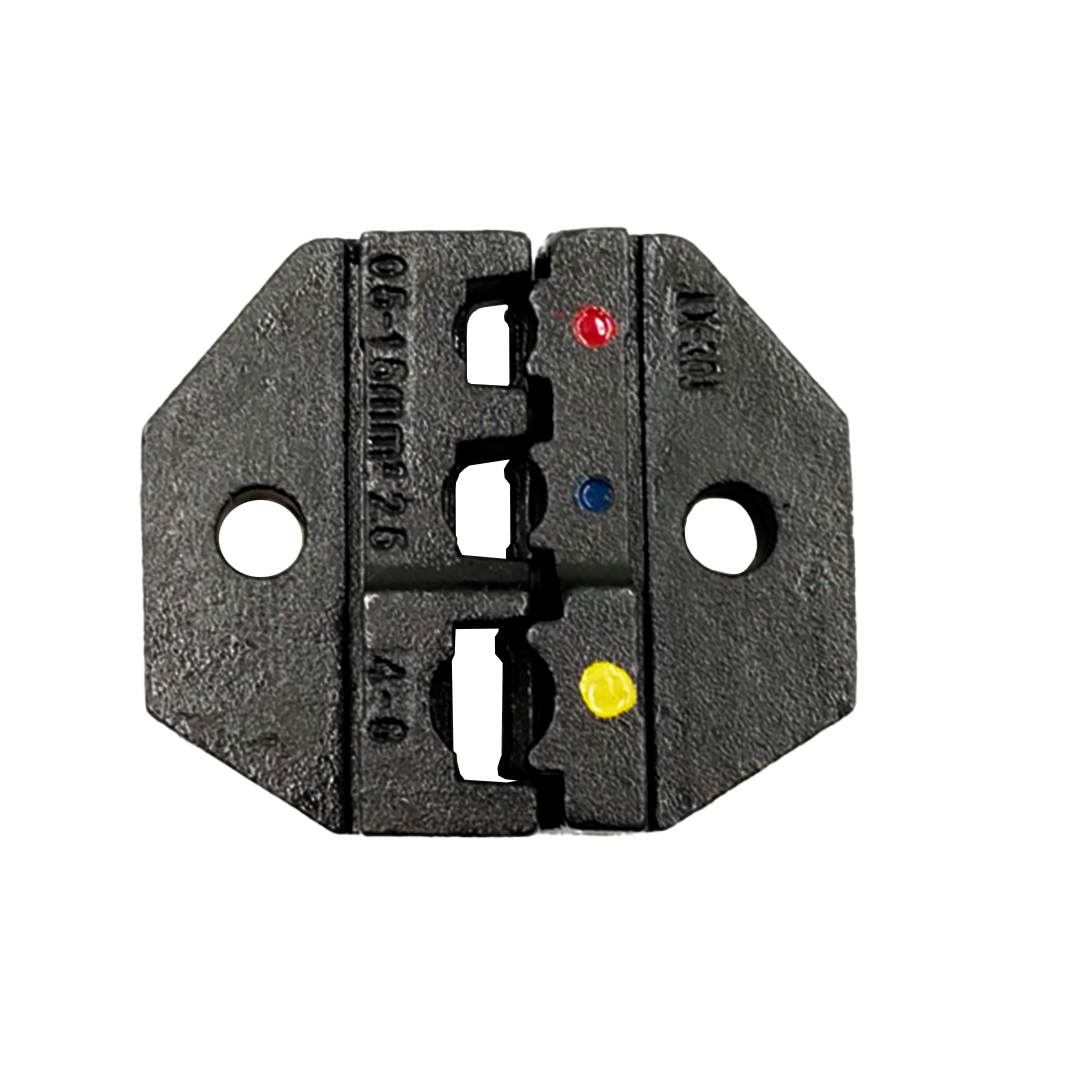

Crimp Die #1 | Ring Terminals | 0.5 - 6 mm² (20-10 AWG) |  |

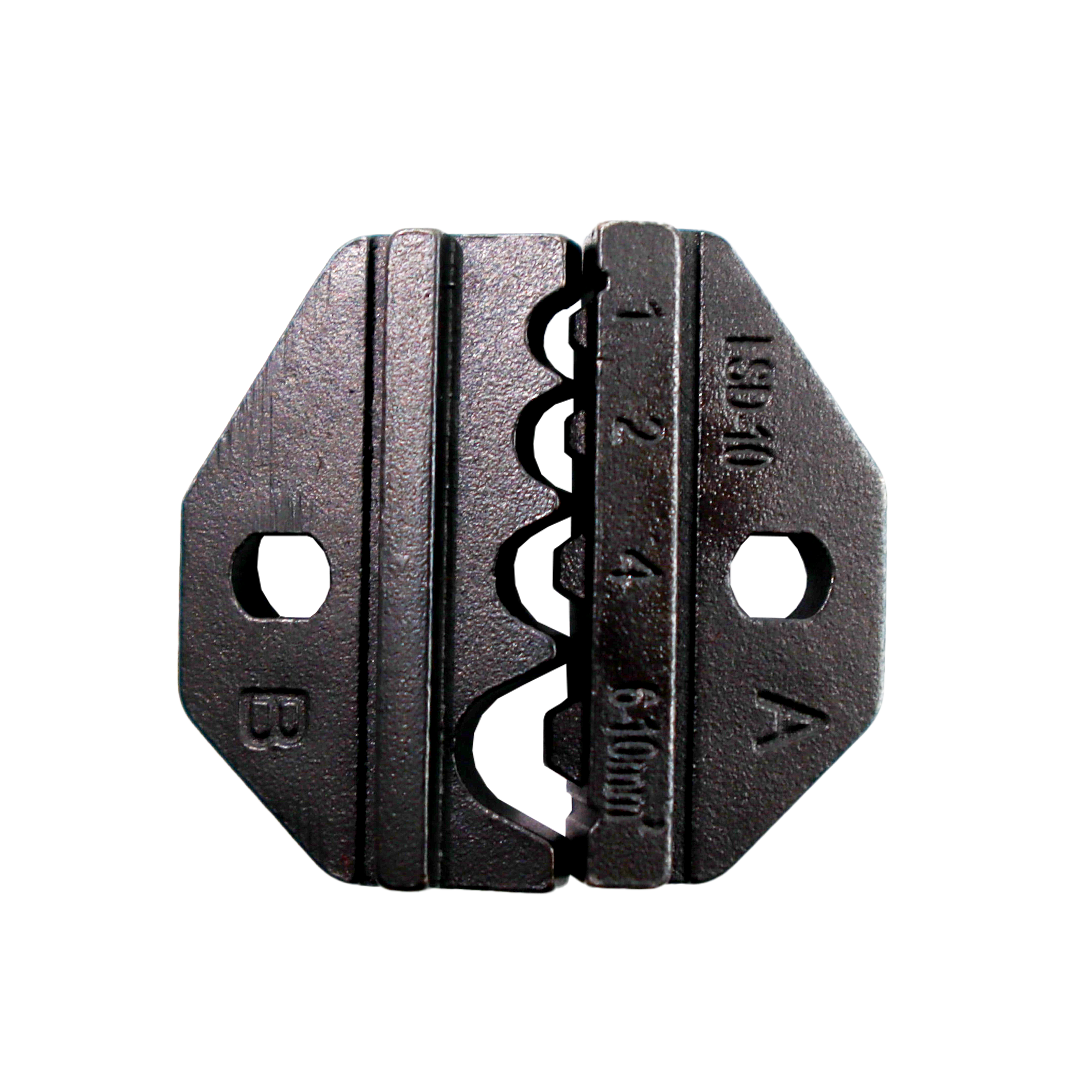

Crimp Die #2 | Small Ferrules & Anderson Contacts | 1 - 6 mm² (17-10 AWG) |  |

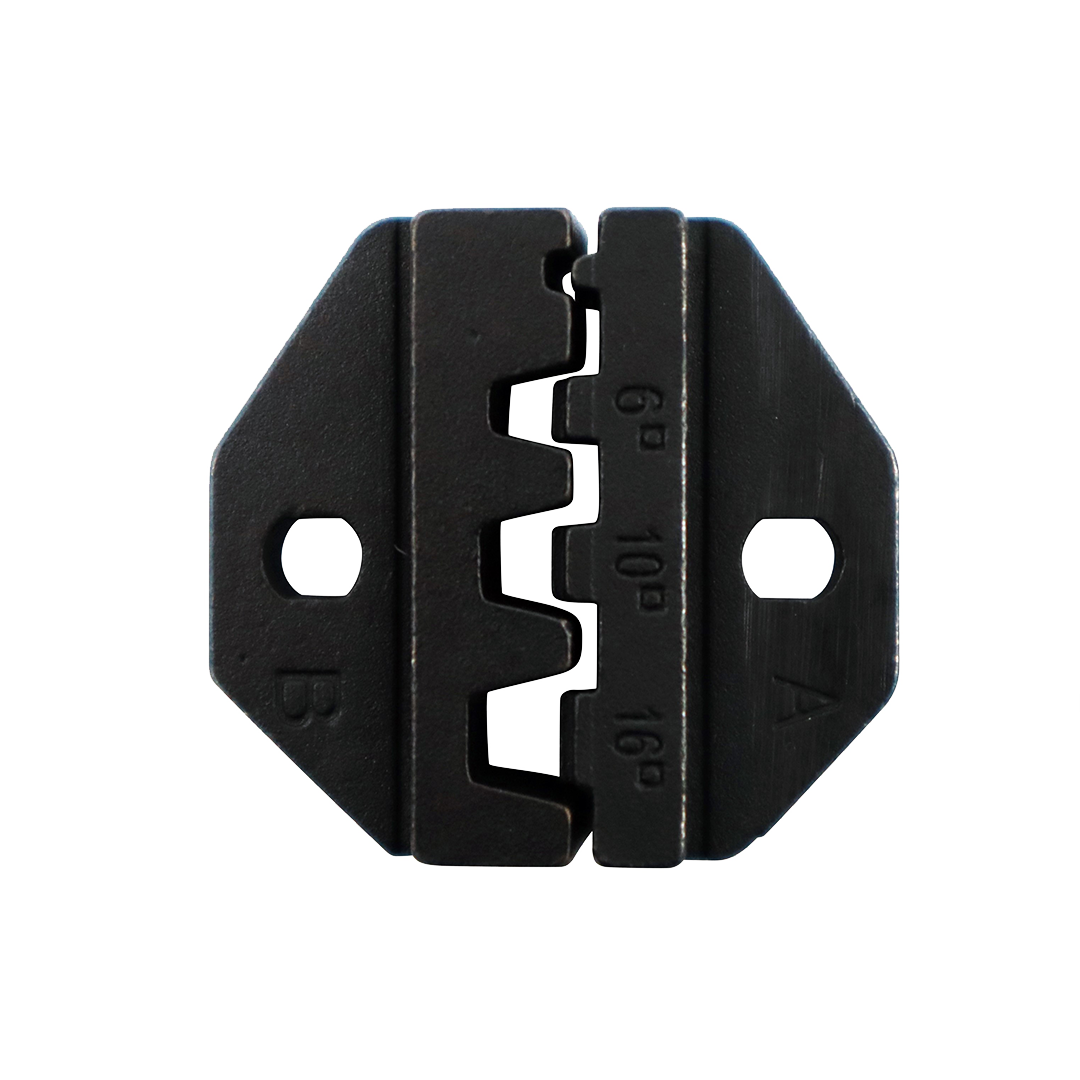

Crimp Die #3 | Large Insulated Ferrule Terminals | 6 - 16 mm² (10-6 AWG) |  |

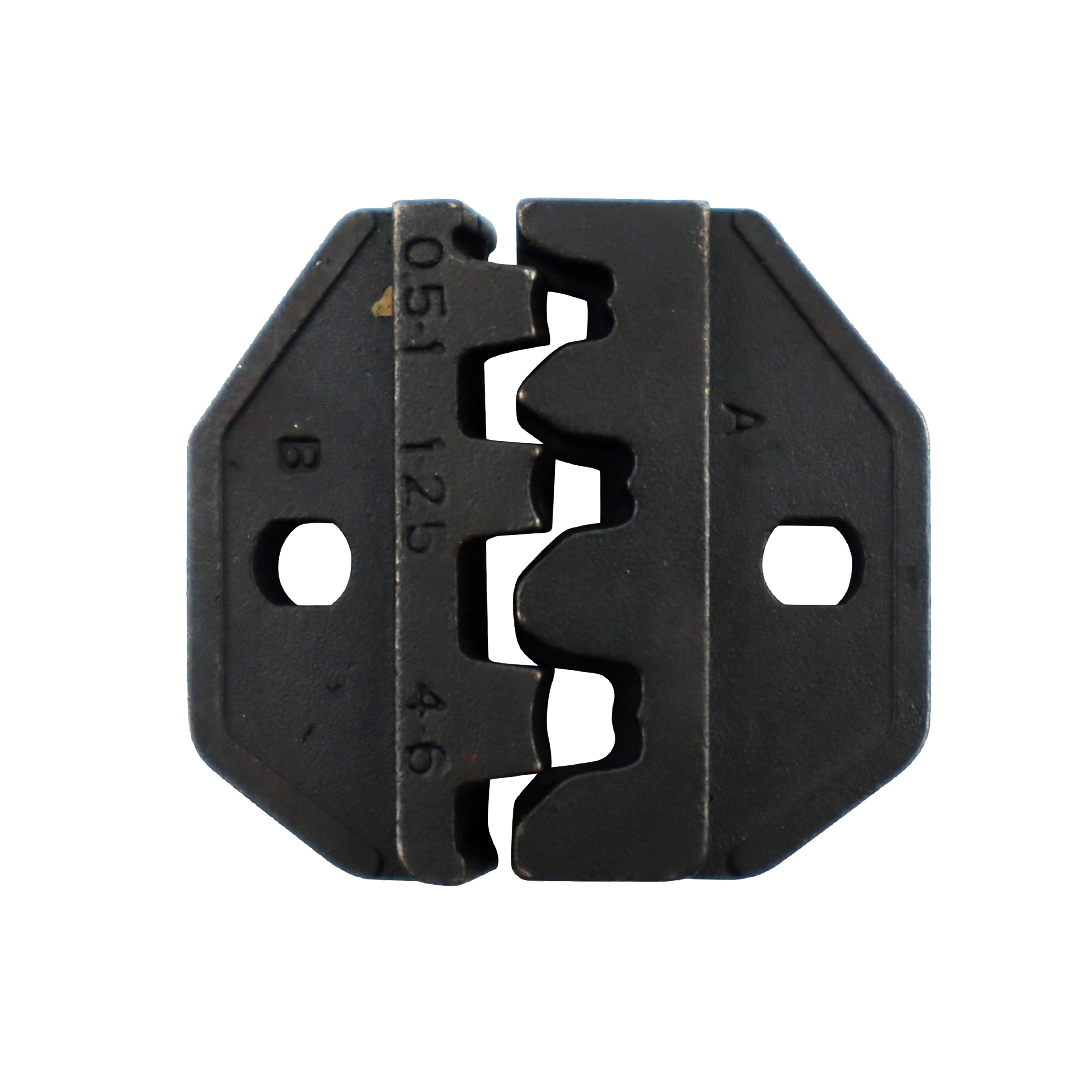

Crimp Die #4 | Non-Insulated Cable Links | 1.5 - 6 mm² (16-10 AWG) |  |

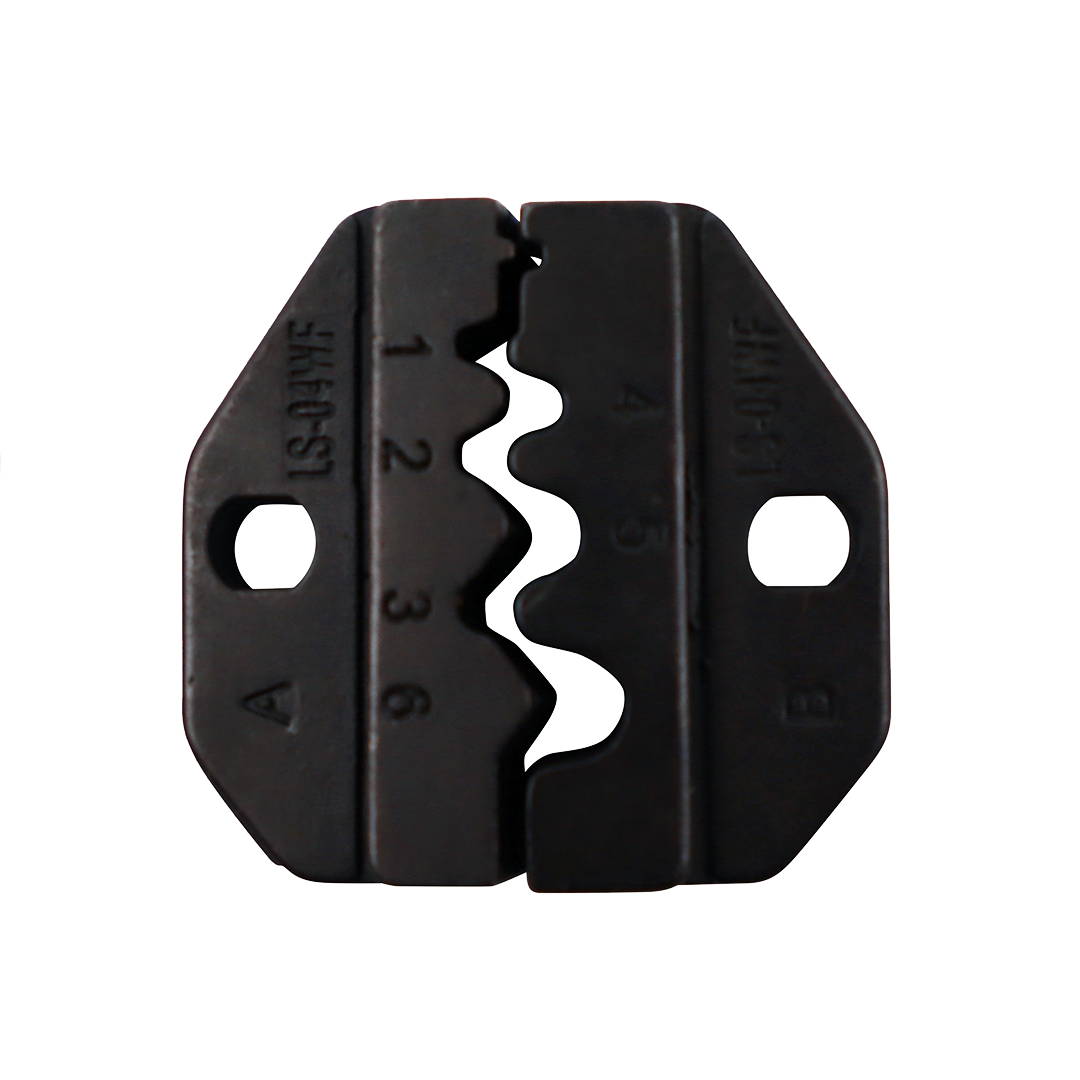

Crimp Die #5 | Non-Insulated Open Plug Terminals | 0.5 - 6 mm² (20-10 AWG) |  |

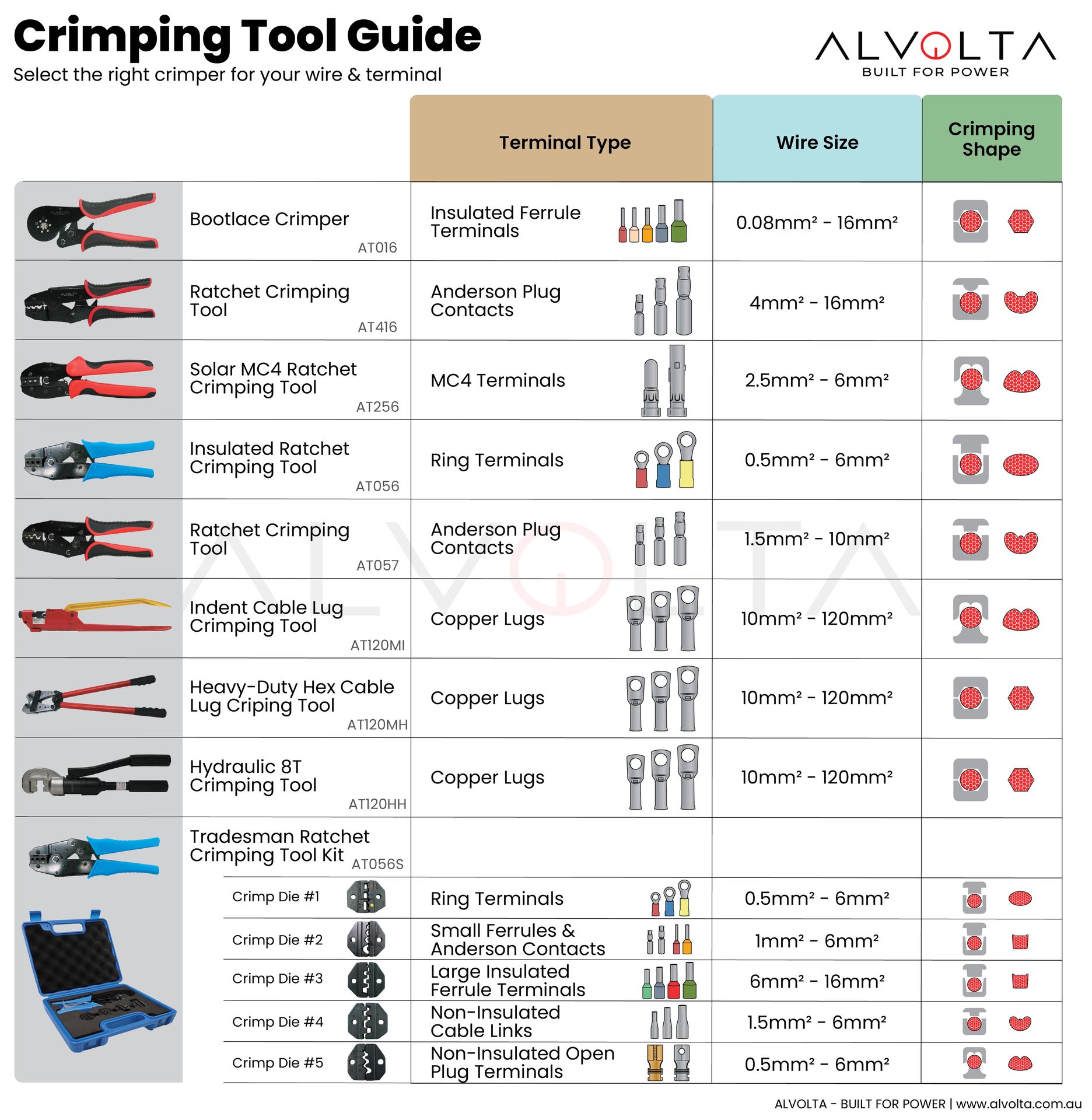

Crimping Tool Guide
Crimper dimensions
Length | 190 mm |
Width | 70 mm |
Depth | 45 mm |
Weight | 0.35 kg |
Case dimensions
Length | 275 mm |
Width | 220 mm |
Depth | 67 mm |
Weight | 1.4 kg |
