Alvolta Ratchet Crimping Tool 1.5mm² - 10mm²

Alvolta Ratchet Crimping Tool 1.5 - 10mm

(0.0)

Alvolta Ratchet Crimping Tool 1.5mm² - 10mm²

1.5 - 10 mm² ratcheting crimper for crimping Anderson plug contacts

$ 49.00 - Inc GST 49.0 AUD $ 49.00

This combination does not exist.

ADD TO CART Buy now

BrisbaneIn stock

SKU: AT057

Category: Cable & Accessories , Tools

Features:

1.5 - 10 mm² (20-6 AWG) ratcheting crimper
10 mm² cavity suitable for Anderson plug contacts
Pressure adjustment for crimping force control
Ratchet mechanism for complete crimping guarantee
Automatic release with manual override
Ergonomically designed handles
Compact and lightweight
Use 50% less energy with each crimp

What to use it for

These crimpers are designed to make secure electrical connections for low-voltage and 12V systems in applications like solar power, caravans, and 4WDs. They are used to crimp Anderson plug contacts onto stranded Copper wire up to 10 mm².

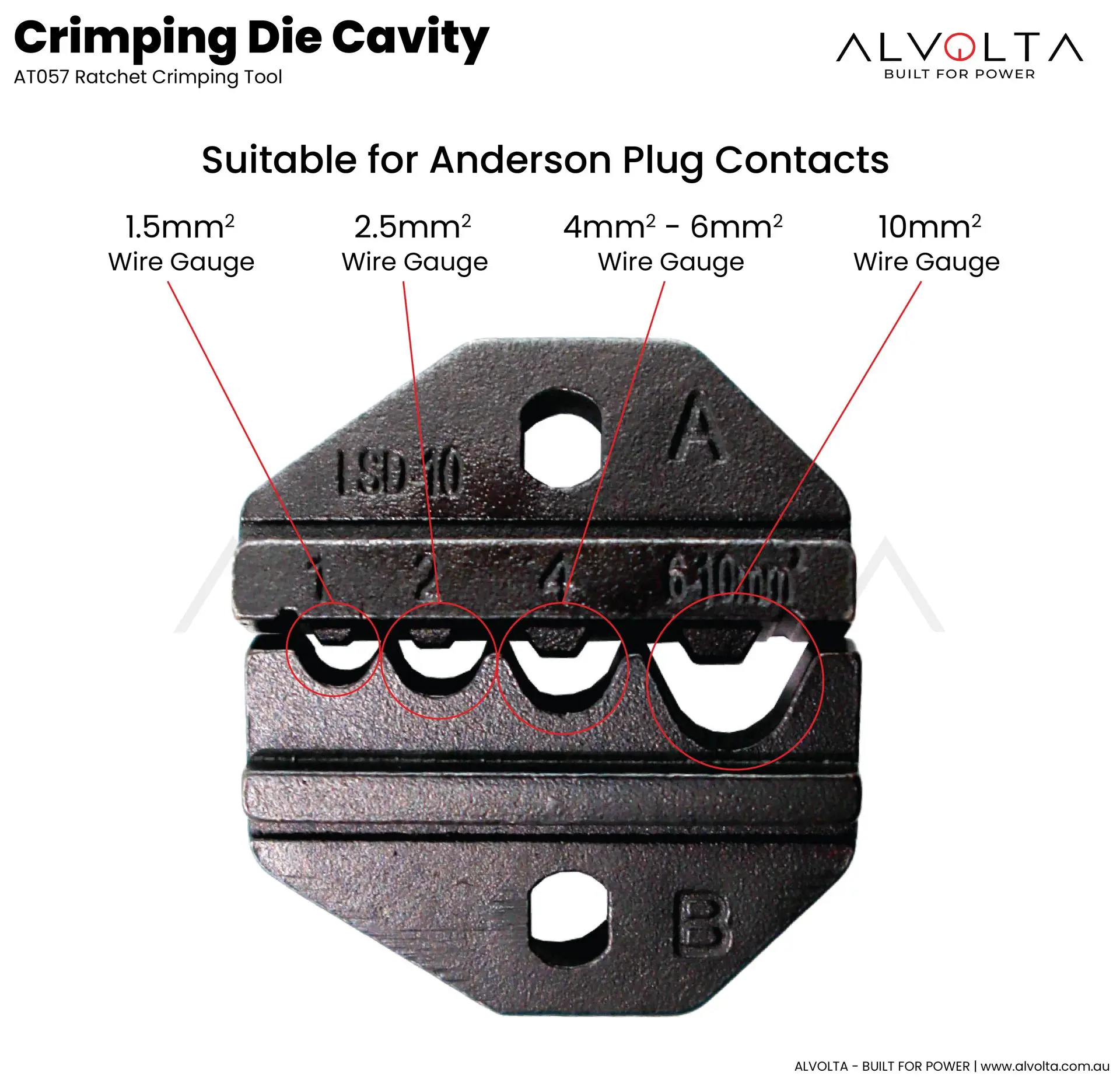

Cavities Included

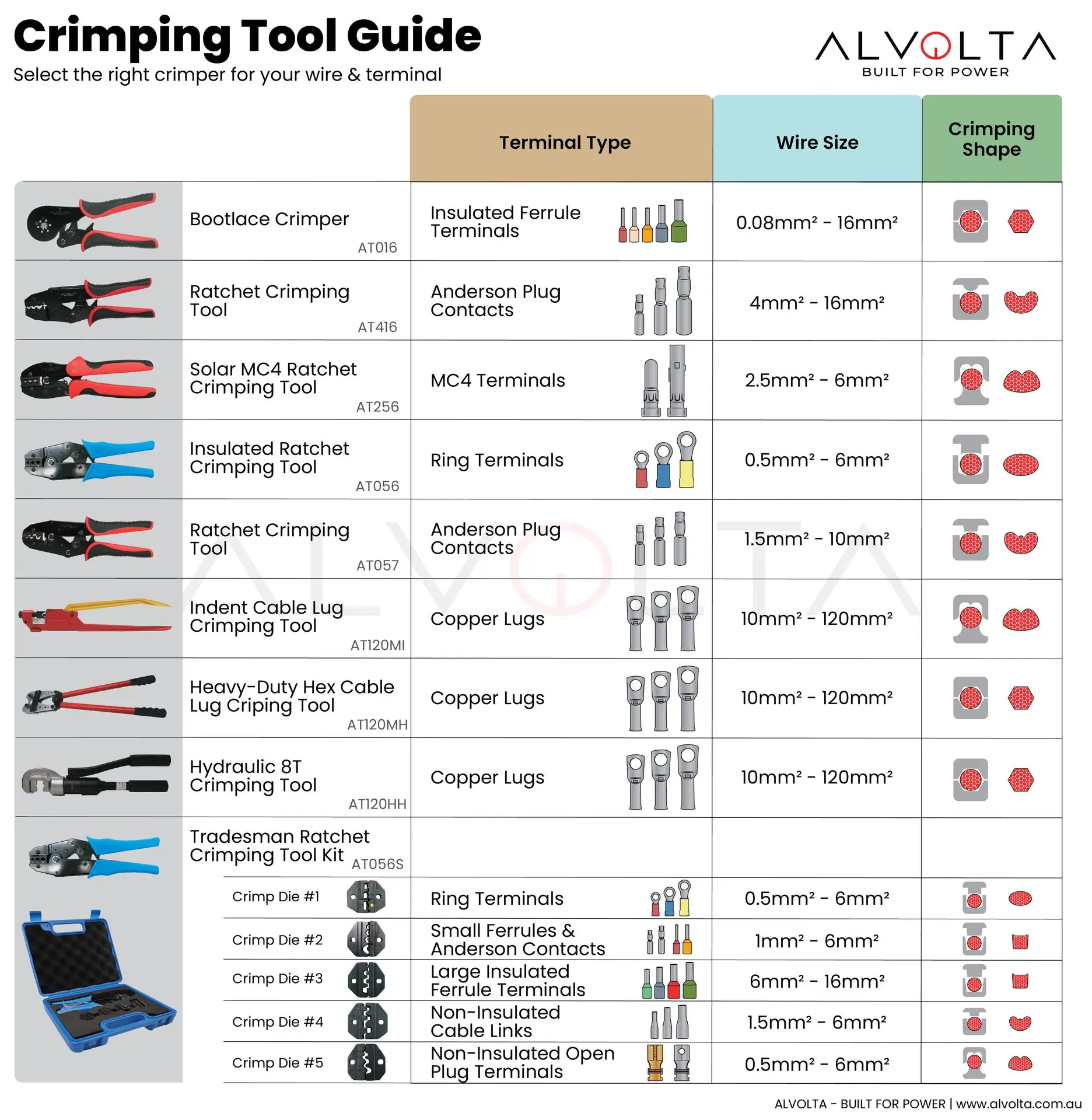

Crimping Tool Guide

Dimensions

Length	230 mm
Width	70 mm
Depth	45 mm
Weight	0.60 kg

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_AT057.pdf

Download

Unlike standard crimpers, a ratchet crimping tool locks in place until the correct pressure is applied, ensuring each crimp is completed to a uniform standard. This helps prevent under- or over-crimping, improving the safety and reliability of your connections.

Yes. Occasionally apply light machine oil to the pivot points and keep the jaws clean of debris. This ensures smooth operation and long tool life. If the ratchet tension feels loose, most tools include an adjustment screw for calibration.

A ratchet crimping tool is used to securely attach cable lugs, terminals, and connectors to electrical wires. This tool provides consistent, professional crimps for medium-duty applications such as solar, automotive, marine, and off-grid electrical systems.

This model is designed for cables ranging from 1.5 mm² to 10 mm², covering the most common sizes used in 12V and 24V DC wiring systems. It’s ideal for use with ring, spade, fork, and bootlace-style terminals.

Yes. Many ratchet crimpers in this size range include interchangeable dies or jaws that can handle both insulated and non-insulated terminals. Always check the die markings to confirm compatibility.

Absolutely. The ratchet design, ergonomic grips, and heavy-duty steel construction make it a reliable tool for electricians, installers, and DIY users who require consistent, high-quality crimps.

Product Specifications

Suitable Cable	Stranded Copper Wire up to 10 mm²
Suitable Terminals	Anderson Plug Contacts
Crimping Cavities	8 AWG, 12-10 AWG, 14 AWG & 16 AWG
Body Material	Carbon Steel
Handles Material	Moulded Plastic
Colour	Red
Dimensions	230 x 70 x 45 mm
Weight	0.60 kg
