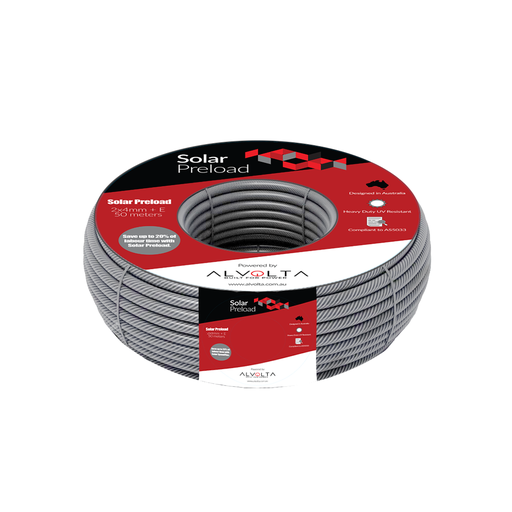

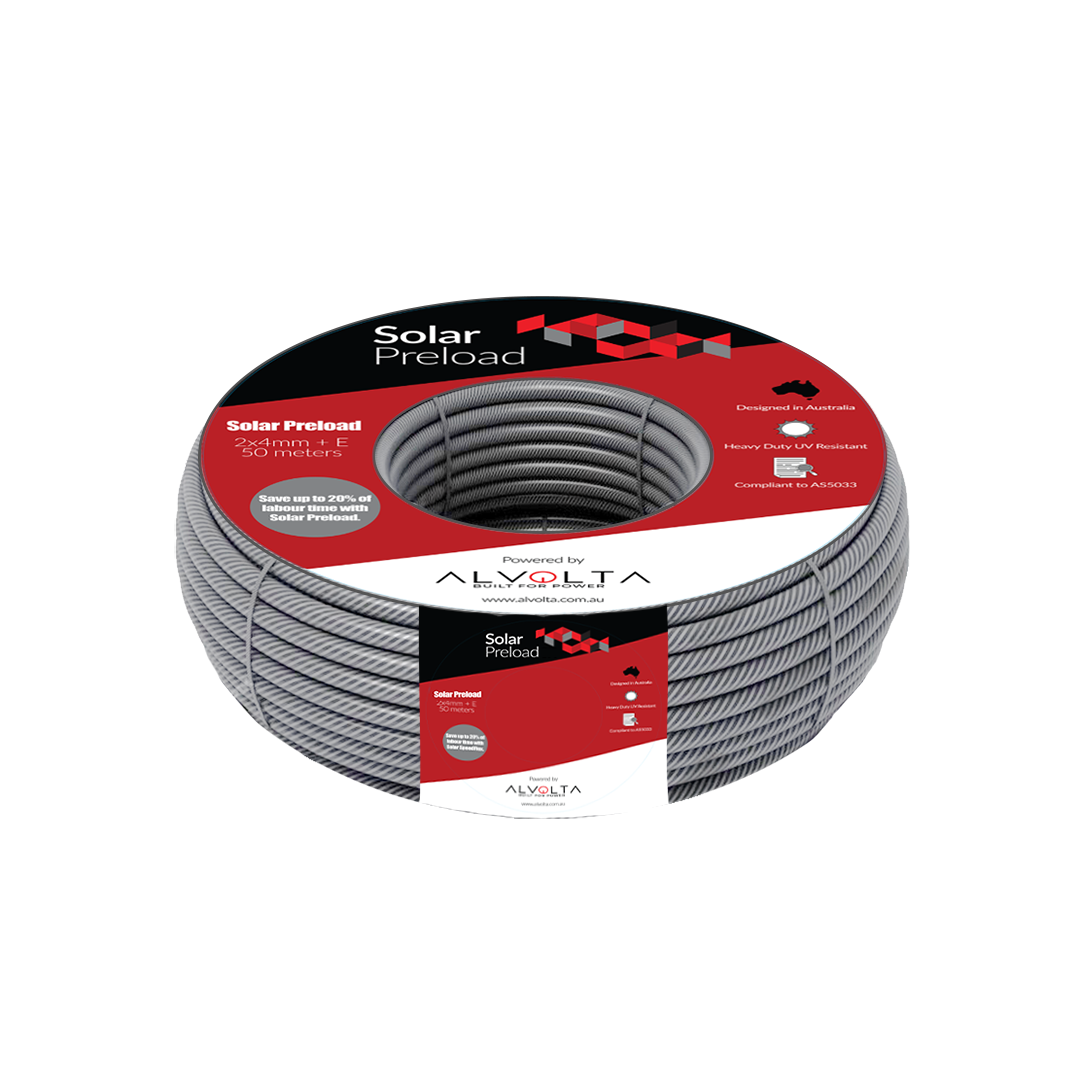

Alvolta Solar Preload 4x4mm+E 50m Roll
50m roll of 25mm grey UV solar conduit pre-loaded with 4x4mm² solar cable plus earth
Alvolta Solar Preload 4x4mm+E 50m Roll
Preload features
- 25mm heavy-duty UV solar conduit pre-loaded with 4x 4mm² solar cables (2x red, 2x black) and earth cable
- 50m roll
- Saves feeding cable through conduit on site
Build
- Solar cable rated 1500V DC, UV resistant, halogen free (IEC62930, EN50618)
- Earth cable halogen free (EN50525)
- Grey PVC conduit, pre-printed, UV stabilised (AS2053, UV resistant to AS5033)
Where to use it
The Alvolta Solar Preload 4x4mm+E 50m Roll gives installers solar DC cable and earth already loaded in heavy-duty UV conduit, ready for roof-to-inverter runs on residential and commercial solar installations.
With the cable already in the conduit there's no pulling or feeding on site, which saves installation time. Install to AS/NZS 5033 and local wiring rules. It is backed by a 1-year warranty.
What's in the box
- 50m roll of conduit with 4x 4mm² solar cables (2x red, 2x black) and earth cable pre-loaded
Dimensions
Conduit outside diameter | 25 mm |
Conduit inside diameter | 16.5 mm |
Length | 50 m |
Warranty
- 1-year warranty
Applications
Houses
Businesses
Cabins
Off-Grid Systems
RV's
Caravans
Warranty
- 1-year warranty
About Alvolta
Australian-owned and operated, and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
Datasheet_Solar Preload 4x4_V1_compressed.pdf
Download
