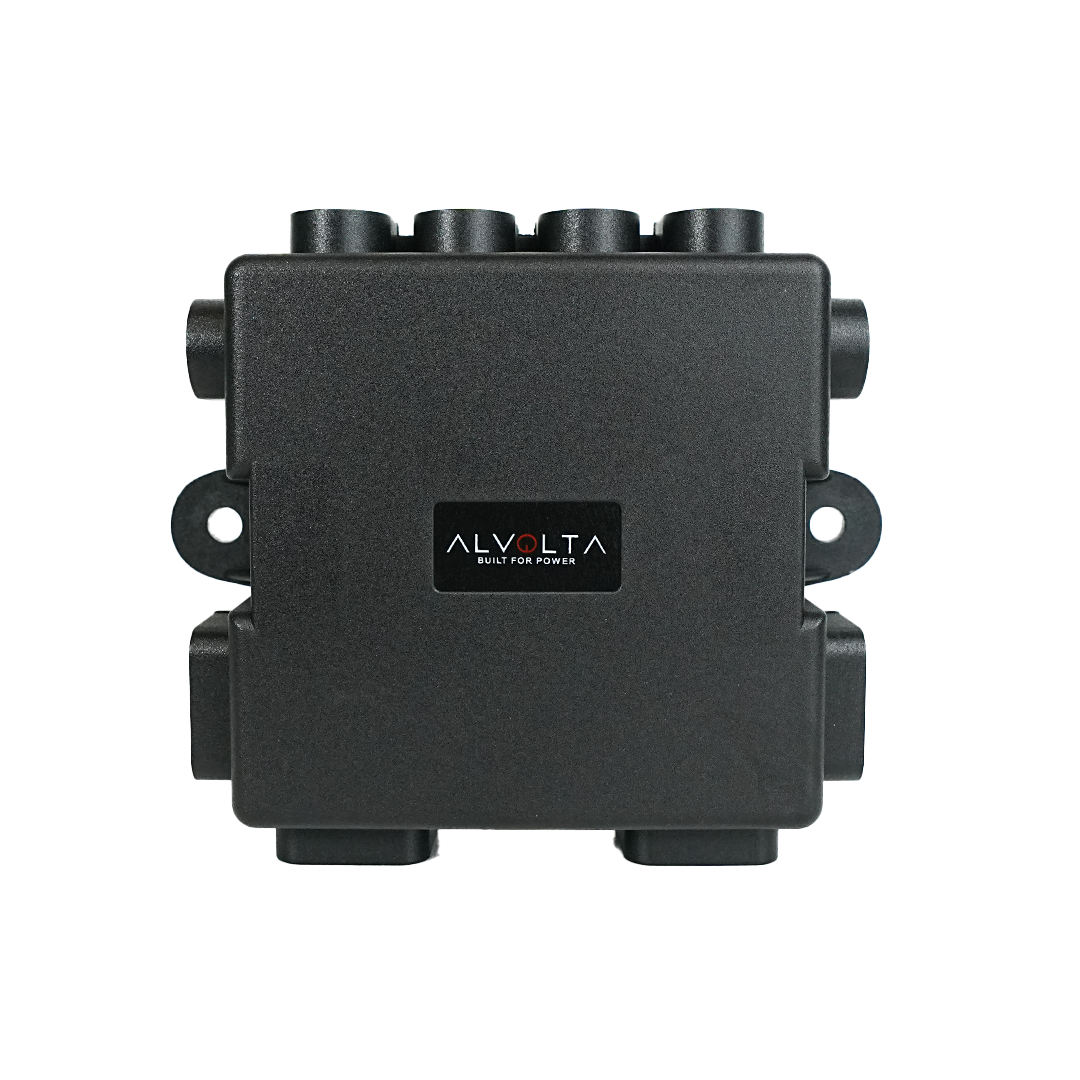

Alvolta Distribution Midi Fuse Box
12V distribution fuse box with 4x AMI/Midi and 1x AMG/Mega fuse positions, 150A
Alvolta Distribution Midi Fuse Box
Fuse box features
- 4x AMI/Midi fuse positions and 1x AMG/Mega fuse position (fuses not included)
- Rated up to 150A
- Maximum voltage 12V DC
- 8x M5 and 2x M8 nickel-plated copper studs
- PBT plastic cover and base
Where to use it
The Alvolta Distribution Midi Fuse Box takes one positive feed and splits it into four fused AMI/Midi circuits, with an AMG/Mega fuse position for the main feed. It tidies up the wiring for accessories such as fridges, lighting, water pumps and USB or 12V sockets in 12V caravans, camper trailers, 4WDs and boats.
Mount it near the battery or main distribution point, run the DC positive feed to the M8 input and connect each load to its M5 output stud. Choose each fuse to protect its cable. The box is rated to 12V DC and 150A, the PBT cover protects the fuses and studs, and it is backed by a 1-year warranty.
Dimensions
Length | 116 mm |
Width | 94 mm |
Height | 36 mm |
Safety features
- PBT plastic cover over the fuses and live studs
Warranty
- 1-year warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated, and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
Datasheet_ALV-514D_V2_compressed.pdf
Download
