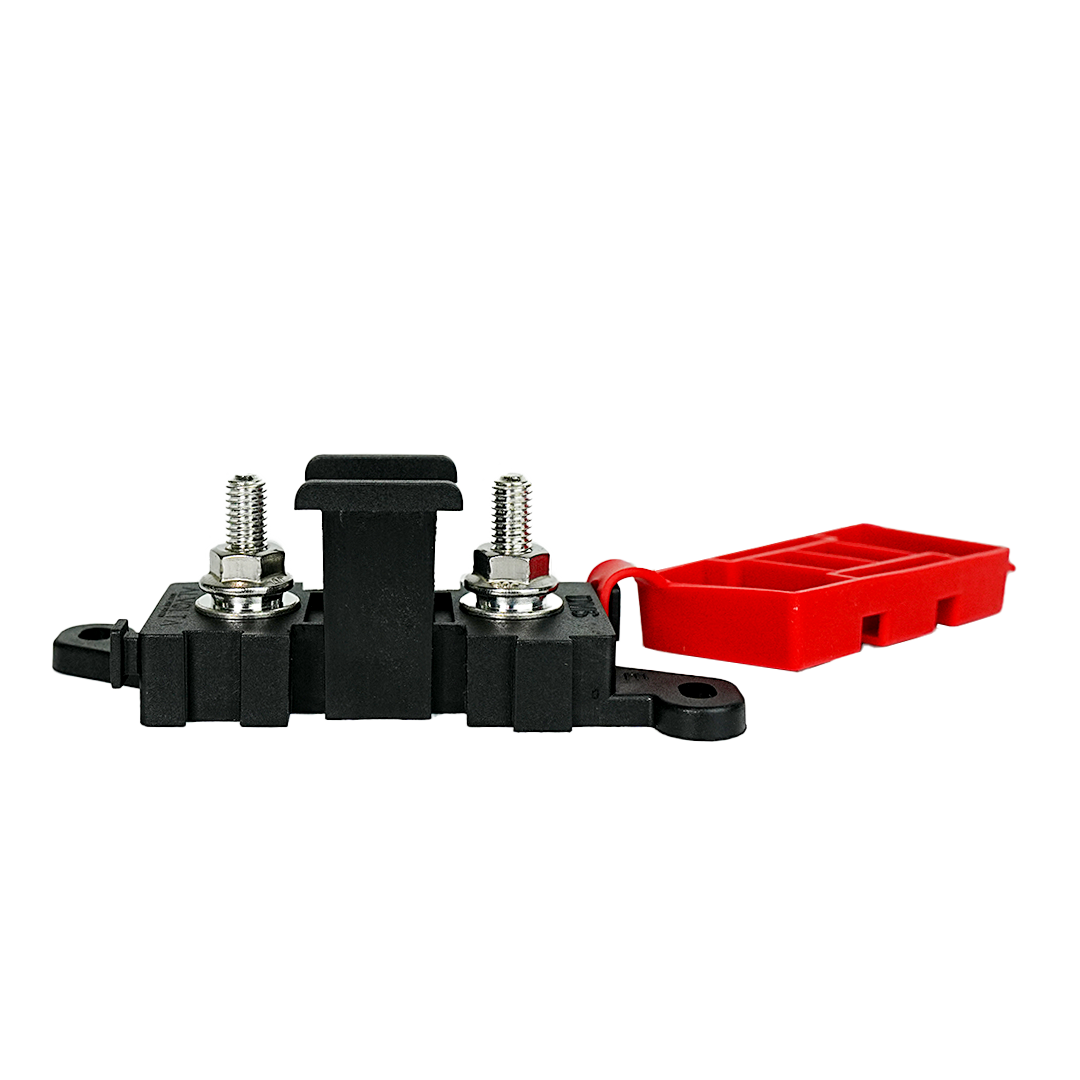

Alvolta Modular AMI/Midi Fuse Holder
Modular AMI/Midi fuse holder with M5 studs and silicone cover, rated to 400A
Alvolta Modular AMI/Midi Fuse Holder
Holder features
- Holds one AMI/Midi bolt-in fuse (fuse not included)
- M5 (5mm) nickel-plated copper studs
- Red silicone protective cover
- PBT plastic base
- Rated up to 400A
- Suitable for 48V systems
Modular system
- Part of the Alvolta Modular Fuse Holder System

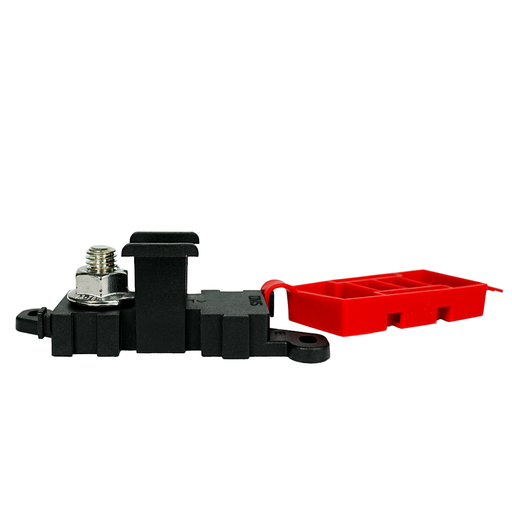

- Joins to more ALV-FHM holders and the ALV-IM Input Module with ALV-2HCP to ALV-8HCP linking plates
- 400A maximum current with linking plates connected
Where to use it
The Alvolta Modular AMI/Midi Fuse Holder protects a single DC circuit with an AMI/Midi fuse. Use one on its own to fuse a feed such as a DC-DC charger, inverter, fridge or lighting circuit, or link several together to build a compact fuse block for a caravan, camper trailer, 4WD, boat or off-grid system.
Mount it as close as possible to the battery or power source and choose a fuse rated to protect the cable. To build a fuse block, add the ALV-IM Input Module for the main feed and join the holders with Alvolta linking plates. The red silicone cover sits over the fuse and live terminals, and the holder is backed by a 1-year warranty.

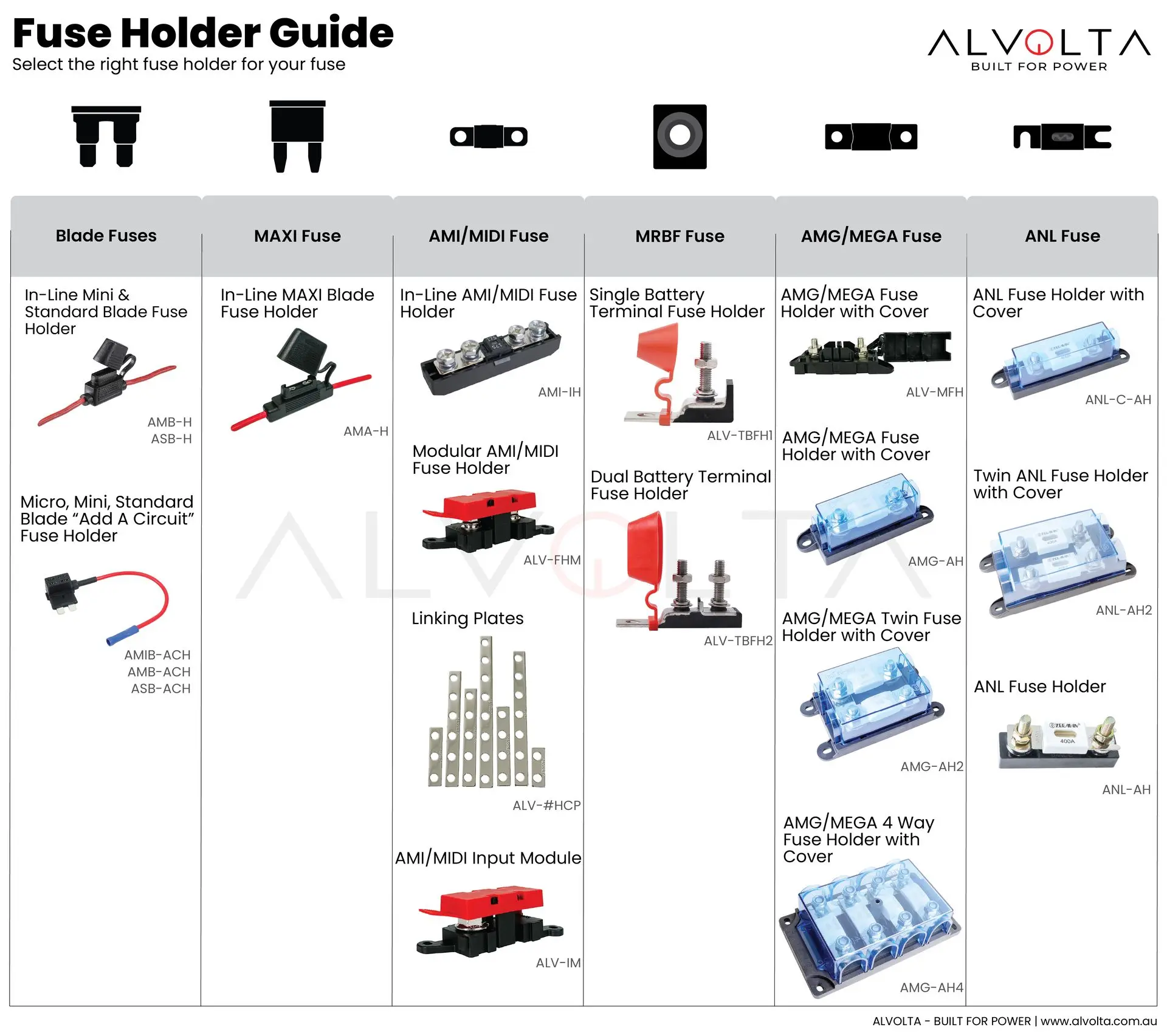

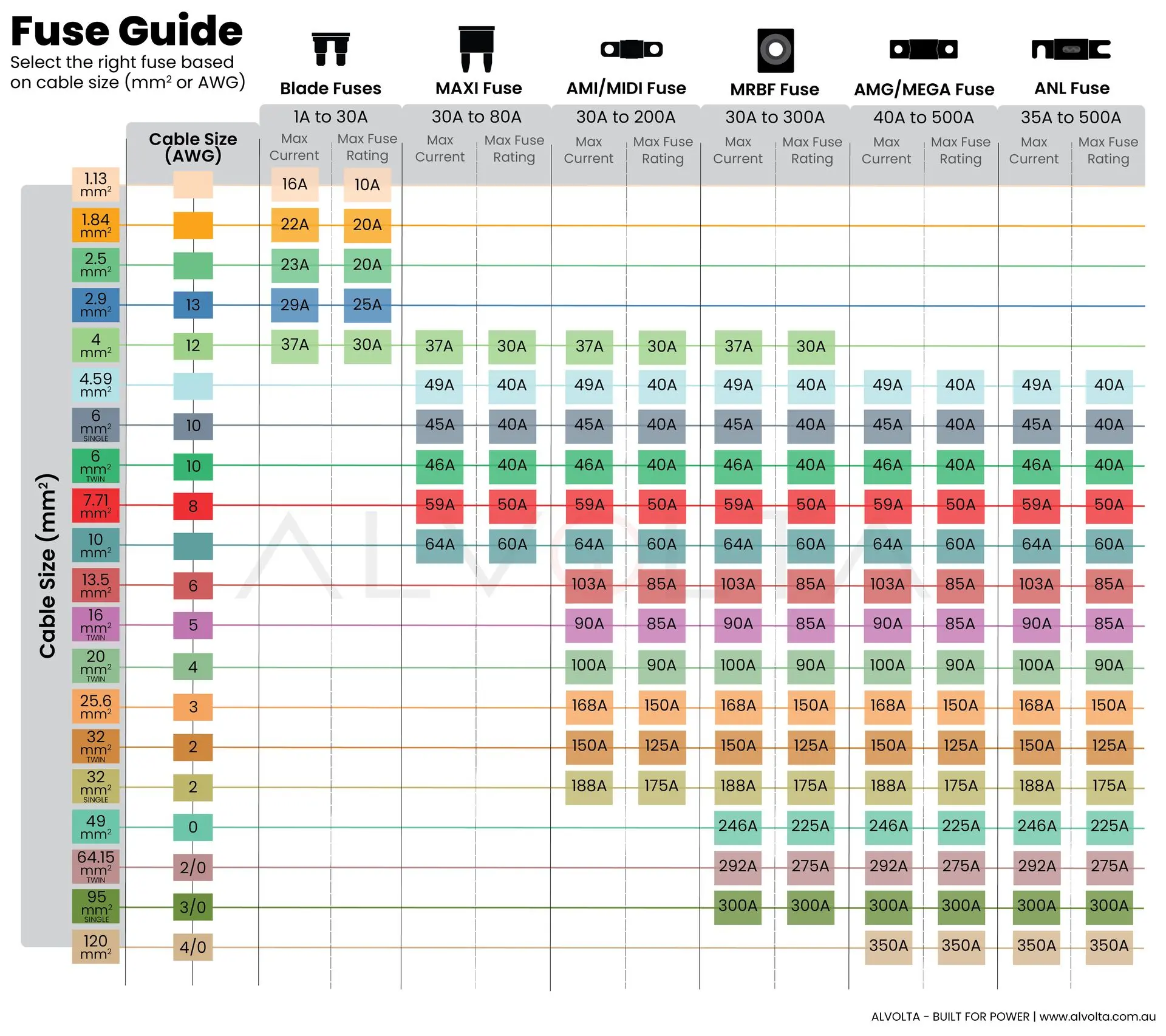

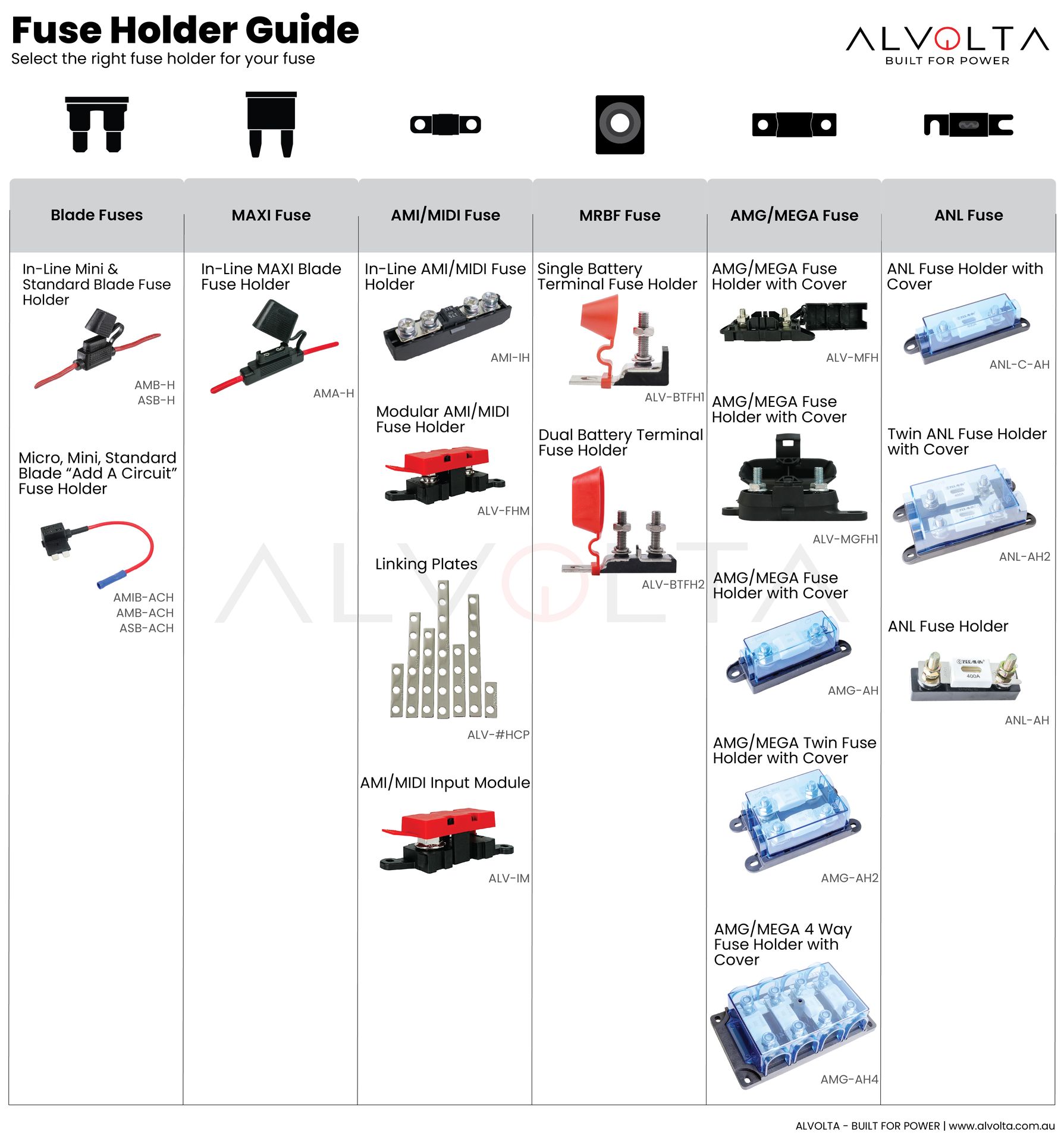

Fuse guides
Dimensions
Length | 79 mm |
Width | 34 mm |
Height | 26 mm |
Weight | 0.05 kg |
Safety features
- Red silicone cover over the fuse and live terminals
Warranty
- 1-year warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated, and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
