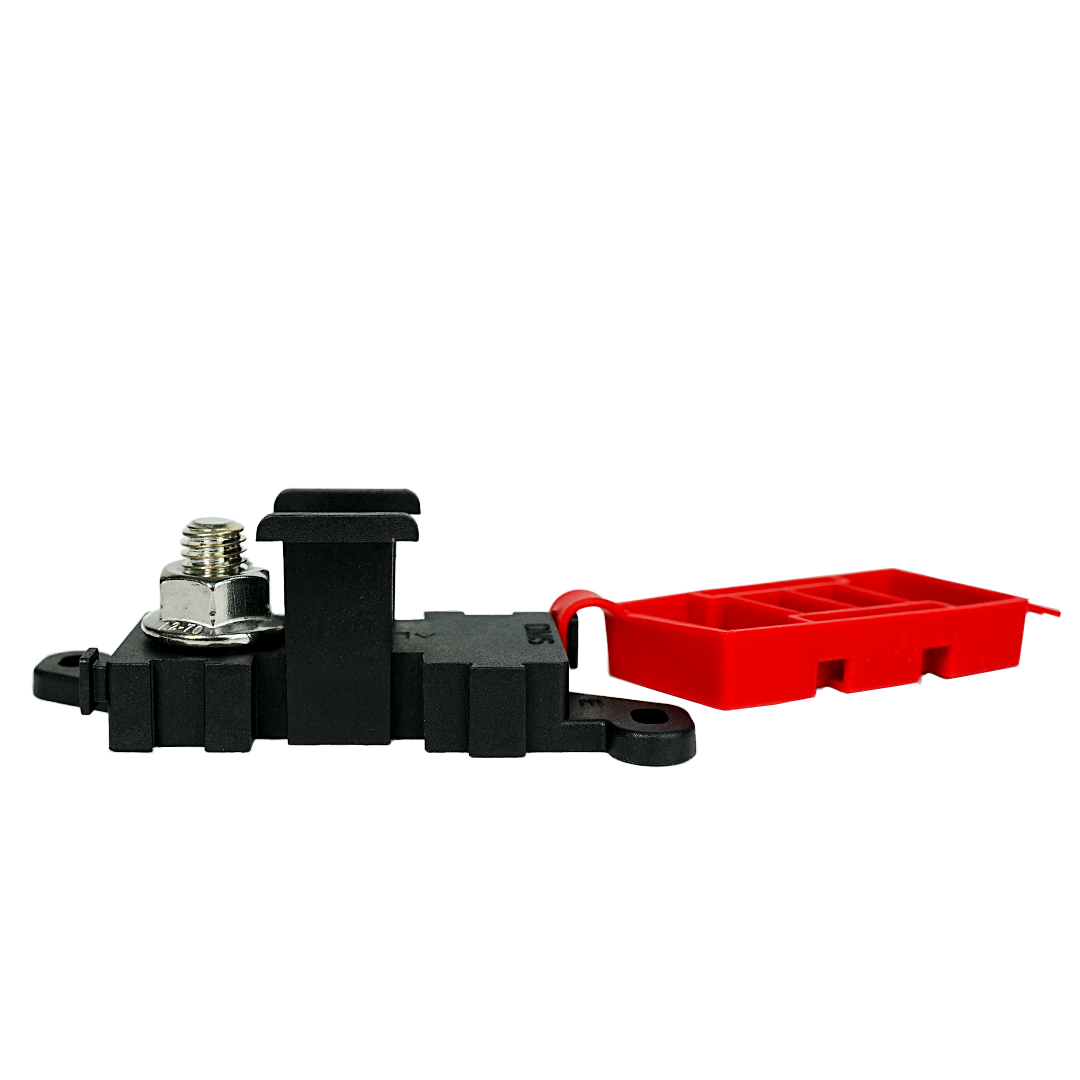

Alvolta AMI/Midi Input Module
Module features
- Main power input for the Alvolta AMI/Midi modular fuse holders
- M8 (8mm) stainless steel stud for the main feed cable
- Red silicone protective cover
- PPS plastic base
- Rated up to 400A
- Maximum voltage 24V DC
Modular system

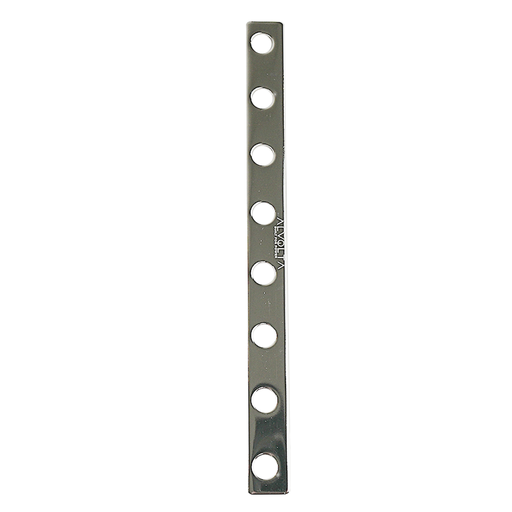

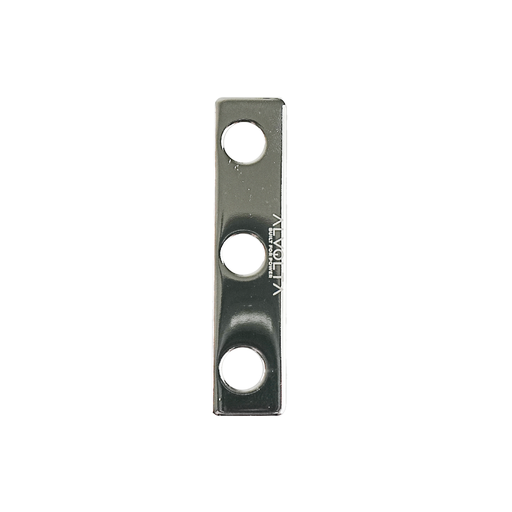

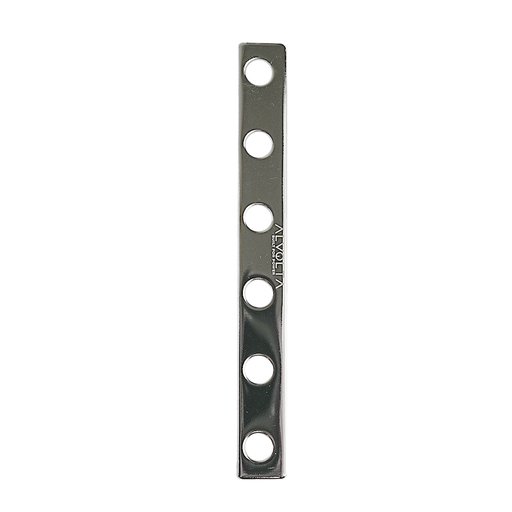

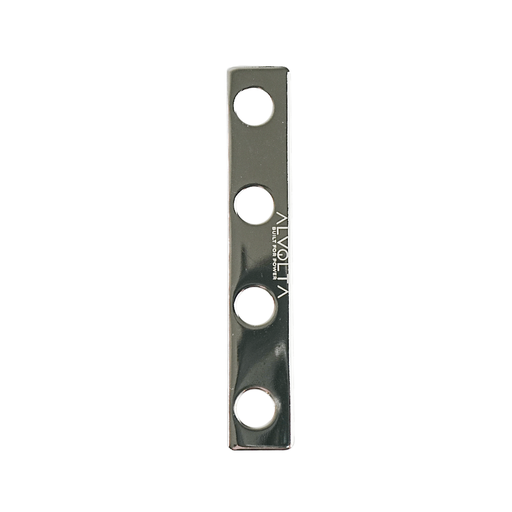

- Joins to ALV-FHM Modular AMI/Midi Fuse Holders with ALV-2HCP to ALV-8HCP linking plates
- 400A maximum current with linking plates connected
- Same 79 x 34 x 26 mm footprint as the ALV-FHM holder
Where to use it
The Alvolta AMI/Midi Input Module is the main feed point for a modular AMI/Midi fuse block. Your battery or main positive cable lands on its M8 stud, and an Alvolta linking plate carries the power across to each ALV-FHM fuse holder, so several circuits share one feed in caravans, camper trailers, 4WDs, boats and off-grid systems.
Mount the block as close as possible to the battery and protect the main feed cable with a suitably rated fuse. The module is rated to 24V DC, has a red silicone cover over the live stud and is backed by a 1-year warranty.
Fuse guides


Dimensions
Length | 79 mm |
Width | 34 mm |
Height | 26 mm |
Weight | 0.05 kg |
Safety features
- Red silicone cover over the live stud
Warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
