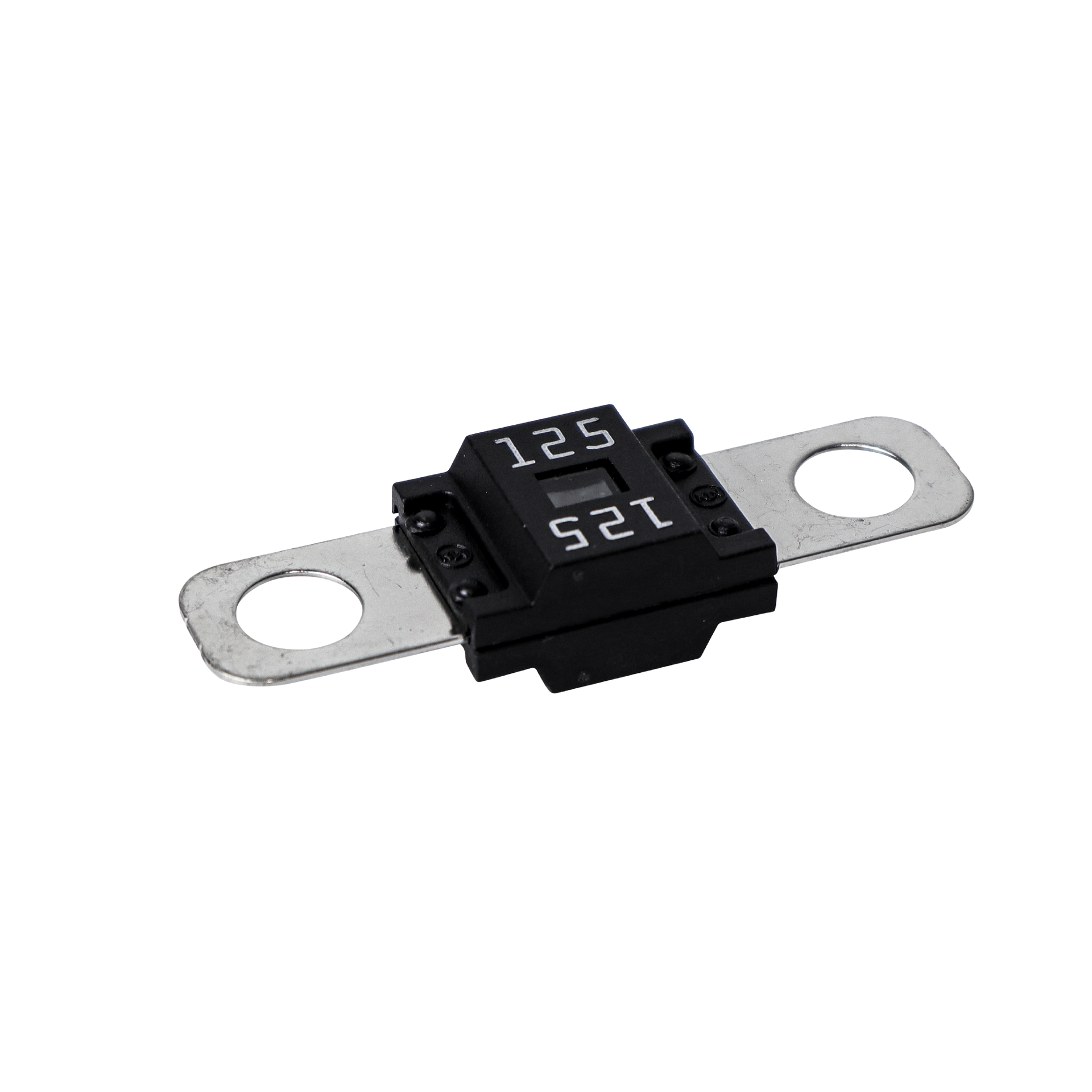

Alvolta AMI/Midi 125A Fuse
Fuse features
- 125A AMI/Midi bolt-in fuse
- Suitable for 12-48V systems (rated 80V DC or less)
- 2000A interrupting rating at 80V DC
- Low 110mV typical voltage drop
- Premium copper alloy terminals
- Compact 41 x 10 x 8 mm size
Design features
- Secure bolt-down terminals for high-vibration installs
- Inspection window shows when the fuse has blown
- UL94-V0 flame-rated PA66+30GF housing

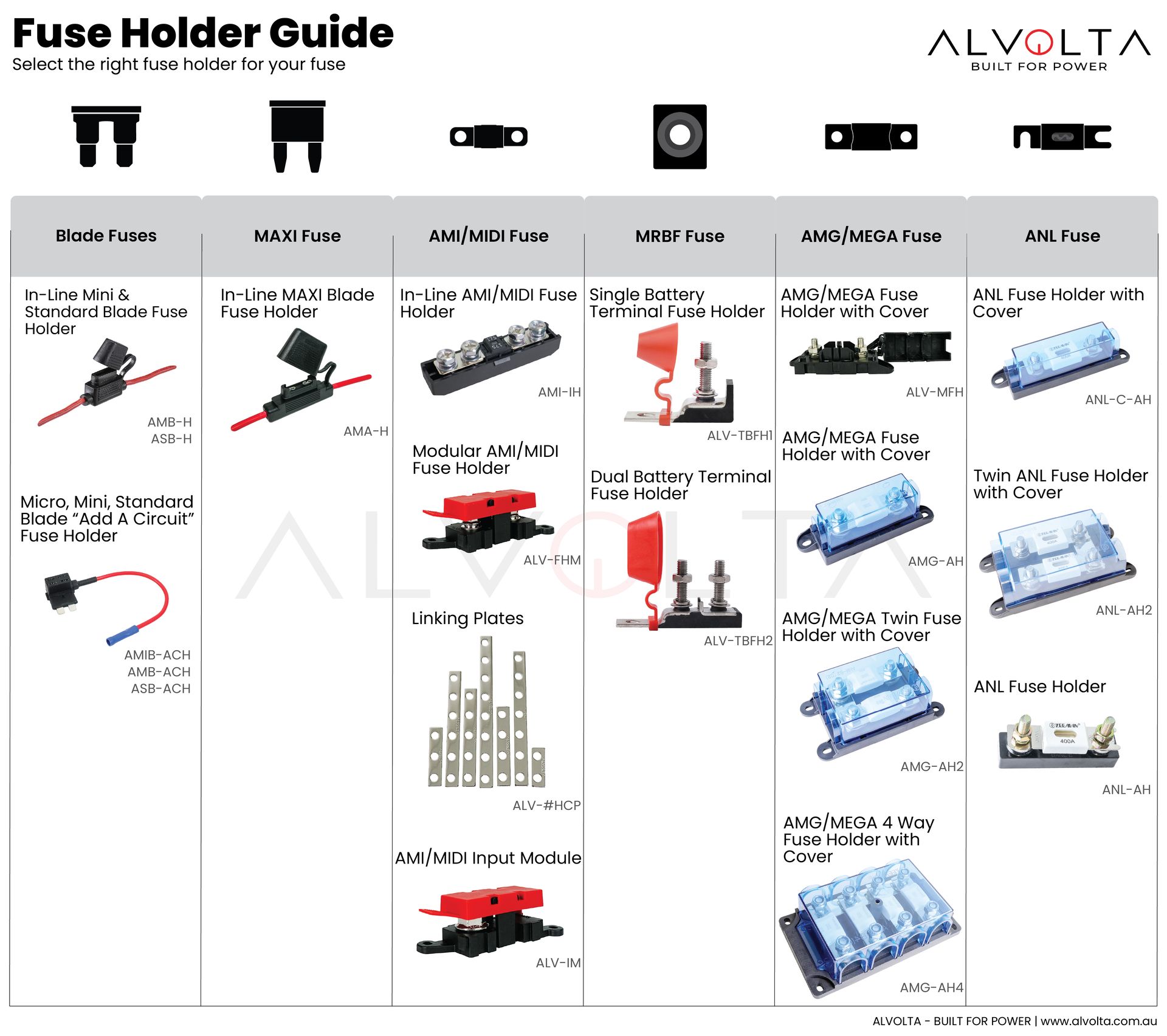

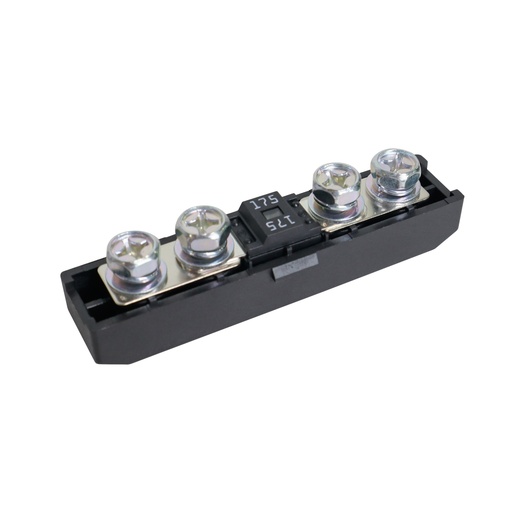

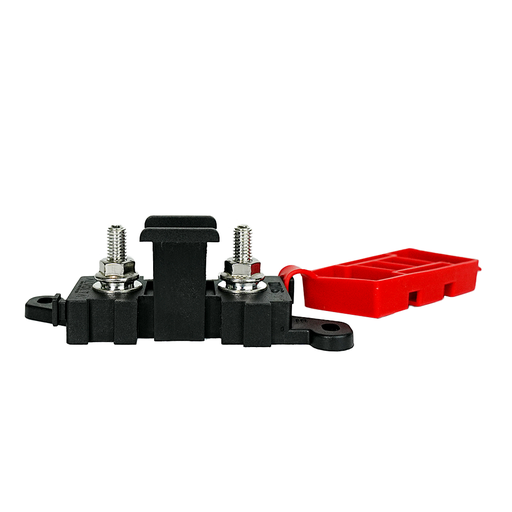

- Fits Alvolta modular AMI/Midi fuse holders
Where to use it
The Alvolta AMI/Midi 125A Fuse is a compact bolt-in fuse for protecting cables in 12, 24 and 48V systems. At 125A it suits circuits such as inverters, battery-to-battery links and main distribution feeds in 4WDs, caravans, camper trailers, boats, trucks and off-grid setups, and it's a common choice for dual battery systems.

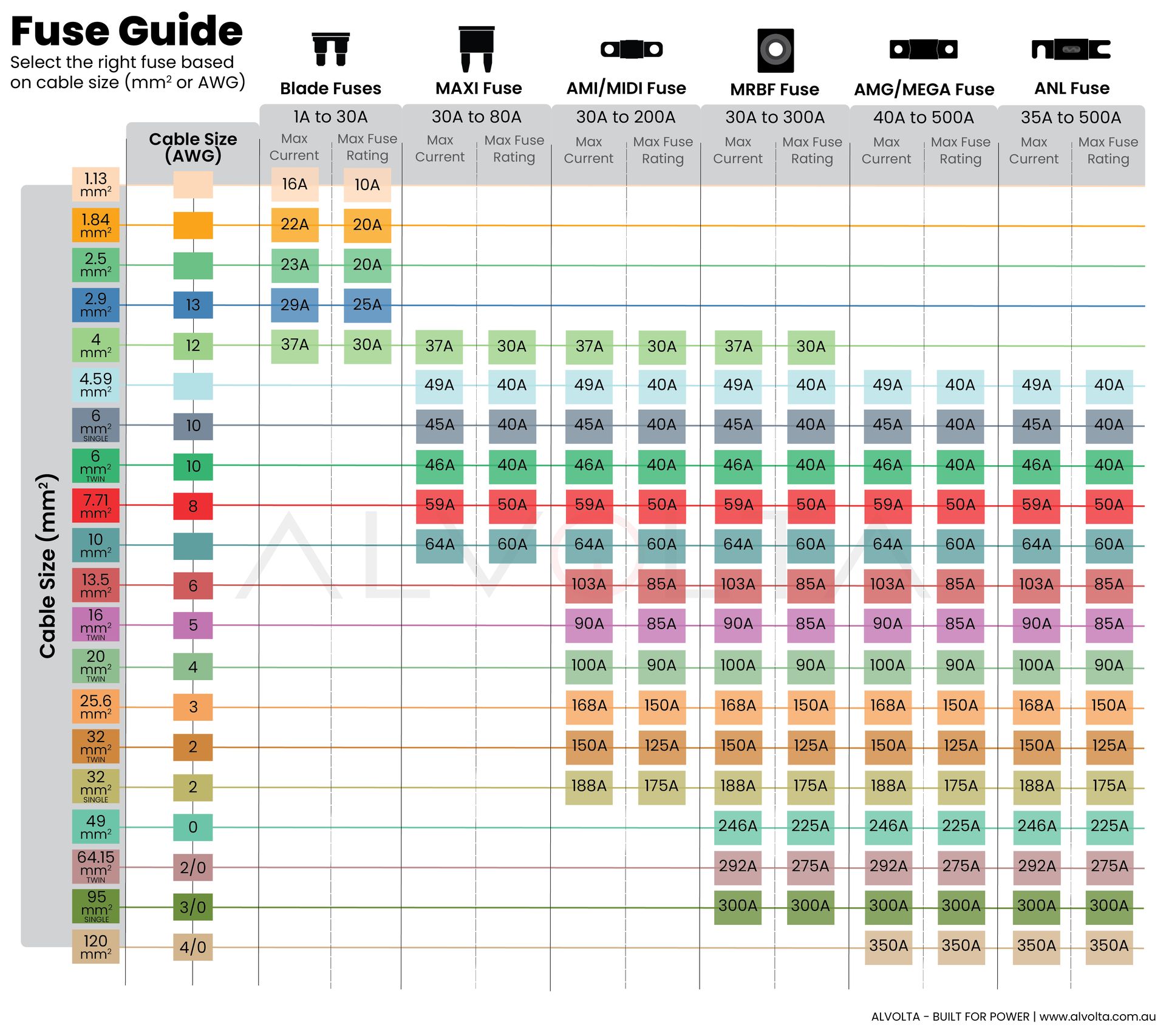

Choose the fuse to protect the cable, not the device: it should be rated at or below the cable's current capacity and above the normal load. Bolt it into an Alvolta modular AMI/Midi fuse holder mounted as close as possible to the battery or power source, and tighten to 3.5-3.8 N.m. It's rated to operate from -40°C to +125°C and is backed by a 1-year warranty.
Dimensions
Body width | 10 mm |
Overall width (terminals) | 12.1 mm |
Length | 41 mm |
Depth | 8 mm |
Weight | 0.02 kg |
Safety features
- Compliant with ISO 8820-5 / GB/T31465.5
- UL94-V0 flame-rated housing
- Fuse inspection window
Warranty
Applications
4WD
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
