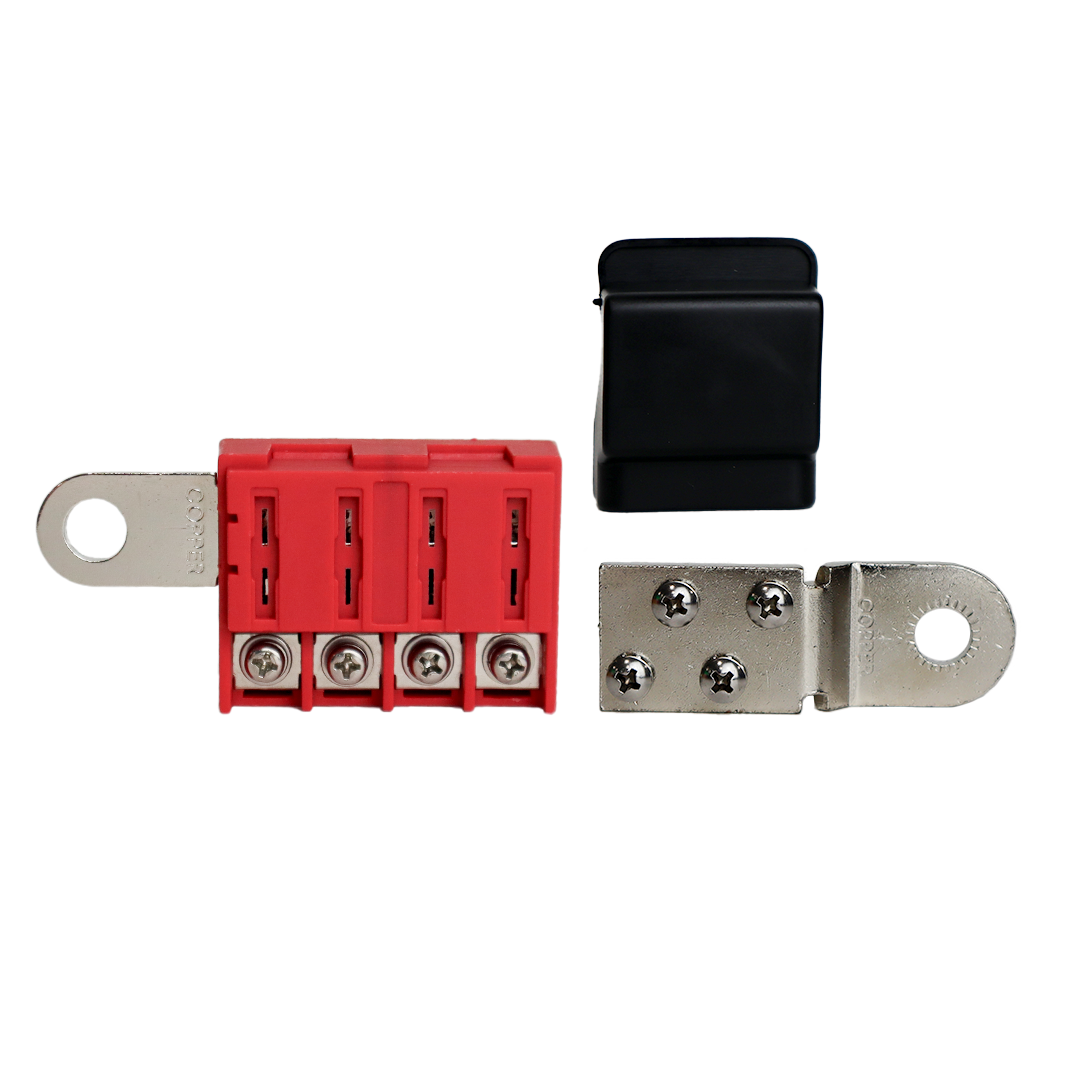

Alvolta Terminal Mount ST Blade Fuse Panel 4 Circuit Kit
Fuse panel features
- Mounts directly on a battery terminal
- 4 individual circuits, up to 30A each, 100A per block
- ATO/ATC/ATP blade fuses 1-30A
- Maximum input 32V DC, 100A
Build
- #8-32 stainless steel screw terminals (2.03Nm)
- Tinned copper contact strip
- PBT plastic base, translucent PC sealable cover
- Red
Where to use it
The Alvolta Terminal Mount Fuse Panel adds up to four fused accessory circuits right at the battery, such as a fridge, lights, a UHF radio or a dash cam, in 4WDs, caravans, campers, boats and work vehicles.
Fit it to the battery terminal, fuse each circuit to protect its cable and close the sealable cover. Fuses and ring terminals are included, and the panel is backed by a 1-year warranty.
What's in the box
- Fuse panel
- 4x ATO fuses
- 4x 14-16 AWG nylon-insulated ring terminals
- 4x 10-12 AWG nylon-insulated ring terminals
- Sealable protective cover
Dimensions
Length | 91.3 mm |
Width | 43.8 mm |
Height | 32.5 mm |
Warranty
Applications
Marine
RV's
Caravans
Off-Grid Systems
Tiny Houses
Cabins
About Alvolta
Australian-owned and operated, and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.
