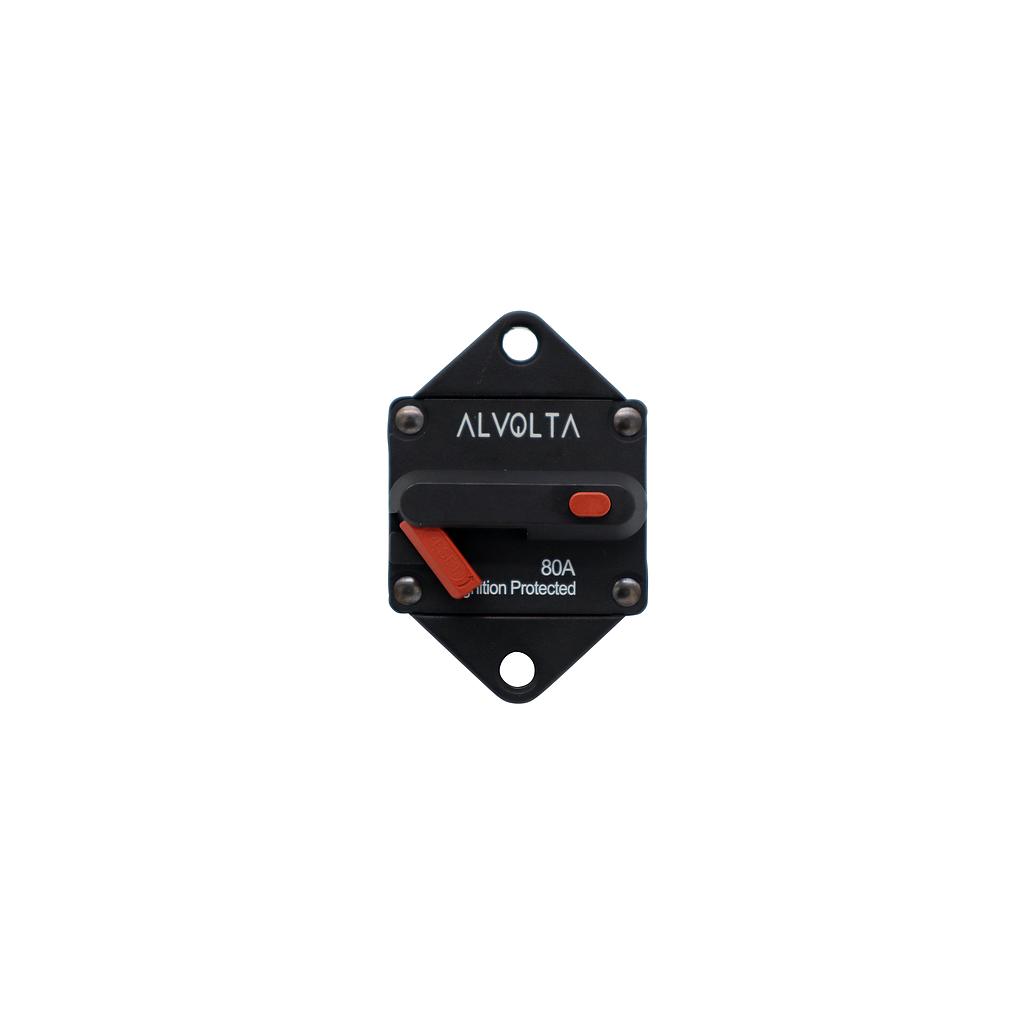

Alvolta 80A Manual Reset Panel Mount Circuit Breaker

80A Manual Reset Panel Mount Circuit Breaker

(0.0)

Alvolta 80A Manual Reset Panel Mount Circuit Breaker

Through-wall panel mount circuit breaker with 1/4" terminal studs

$ 39.90 - Inc GST 39.9 AUD $ 39.90

This combination does not exist.

ADD TO CART Buy now

BrisbaneIn stock

SKU: M1280P

Category: Circuit Protection , Circuit Breakers , Panel Mount

Features

80 A
Manual reset circuit breaker
Panel mount for through-wall installation
Suitable for 12 - 48 V systems
Suitable for heavy-duty applications
IP67 rated
Can be used as an isolation switch
1/4" / M6 terminal studs
Thermal trip with trip status indicator
Manual trip button
Single pole
Ignition protected
Mounting holes on top and bottom for tidy installation

Where to use it

Alvolta panel mount circuit breakers are ideal for under bonnet applications. They are suitable for use in motorhomes, 4WD, boats, marine, and off-grid setups.

Its durable design and IP67 rating make these an excellent choice for heavy duty, off-road applications. It is sealed internally against moisture, dust and dirt.

Dimensions

Width	48.2 mm
Height	57 mm
Depth	44 mm
Weight	.085 kg

Compliance

SAE J1625
ABYC E-11
CE
SAE J1117 (Ignition Protection)
IP67

Warranty

5-year warranty

Applications

Marine

RV's

Caravans

Off-Grid Systems

Tiny Houses

Cabins

About Alvolta

Australian-owned and operated and driven by a passion for excellence, Alvolta offers unwavering performance and durability even in harsh Australian conditions. Alvolta specialises in precision-engineered DC components, designed to enhance off-grid adventures. Their commitment to delivering superior power performance with uncompromising quality is evident in their lineup of solar panels, solar charge controllers, circuit protection devices, mounting solutions, tools, and more. Supply yourself with all the arsenal you need to extend your power supply and adventure for longer with Alvolta.

Datasheet_M1280P_Manual Reset Panel Mount Circuit Breakers.pdf

Download

A manual reset circuit breaker protects your electrical system from overloads and short circuits. When tripped, it cuts off power to prevent damage, and can be manually reset once the issue is investigated and resolved - making it ideal for automotive, marine, solar, and off-grid applications.

A manual reset breaker stays off after tripping, allowing you to inspect and correct the fault before restoring power. In contrast, an automatic reset breaker reconnects power automatically once it cools down, which can risk repeated faults if the issue isn't fixed.

These breakers are designed for flush mounting on a panel or enclosure. Simply mount the breaker on the panel with M8 bolts and connect your positive circuit wires to the terminals as directed. Always ensure the breaker's rating matches your circuit's current load.

Alvolta manual reset circuit breakers are IP67 rated, meaning they are internally sealed for protection against moisture, dust, and dirt. They are also ignition protected.

Circuit breakers will experience less voltage drop across the circuit. When they are tripped, you can simply reset the device as opposed to having to source and install a new fuse, should a fuse blow. These units offer lower voltage drop than a fuse and can be used as an occasional isolation switch.

Product Specifications

Mounting

Panel Mount

Amperage

80 A

Number of Poles

Single Pole Single Throw

Maximum Current Rating

20 - 200 A

Maximum Voltage Rating

48V DC

Calibration at 25°C

100% Hold, 135% Trip

Maximum Interrupt Capacity

3000 A 30V DC

Terminal Stud

M6
Accepts 1/4" ring terminal

Mounting Holes

Colour

Black

Material

Thermoplastic
